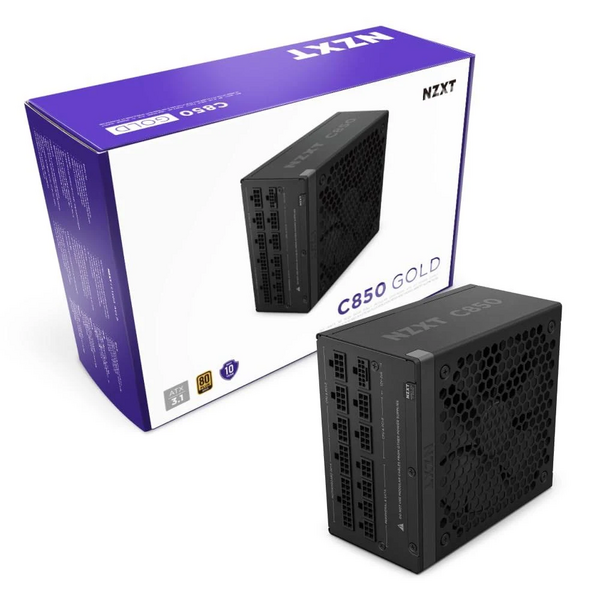

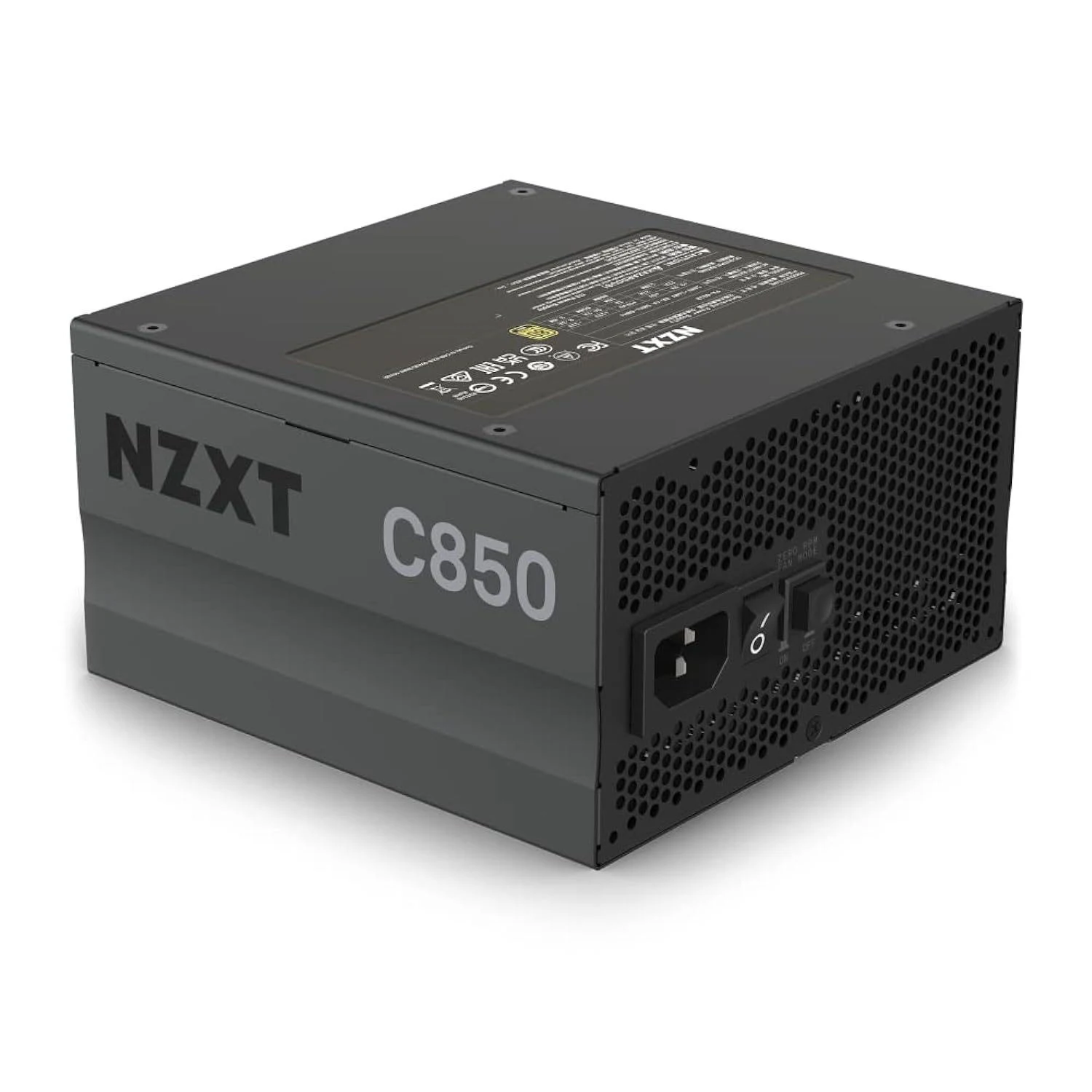

NZXT C850 850W Fully Modular - 80 Plus Gold ATX 3.1 Black PSU

Description

The NZXT C850 Fully Modular PSU offers exceptional power efficiency with its 80 Plus Gold rating. Tailored for high-performance builds, this ATX 3.1 compatible power supply ensures superior stability and quiet operation. Its sleek black design blends seamlessly into any setup while providing reliable, consistent power delivery for your components.

- Tech Specs

Output Connectors

24-pin ATX Power Cable:1

4+4-pin CPU Power Cable:1

8-pin CPU Power Cable:1

6+2-pin PCIe Power Cable:3

16-pin (12+4) 12V-2x6 PCIe Cable:1

SATA Cable:12

Peripherals Cable:4

Cable Specs

24-pin ATX Power Cable:600mm with nylon sleeving

4+4-pin CPU Power Cable:700mm with nylon sleeving

8-pin CPU Power Cable:700mm with nylon sleeving

6+2-pin PCIe Power Cable:650mm with nylon sleeving

16-pin (12+4) 12V-2x6 PCIe Cable:650mm with nylon sleeving

SATA Cable:500 + 150mm

Peripherals Cable:500 + 150mm

AC Input Rating

100 - 240Vac:10A-5A 50Hz-60Hz

200 - 240Vac:-

DC Output Rating

3.3V / +5V:22A (120W)

12V:70.83A (850W)

5Vsb:3A (15W)

Total:850W

Energy Efficiency

Rating:80 Plus Gold

10% loading:85.8% @115Vac

20% loading:89.5% @115Vac

50% loading:91.7% @115Vac

100% loading:89.2% @115Vac

Electrical Features

PF Correction:Active @0.99

Protections:OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent

Protection)

Fan Specs

Dimensions:135 x 135 x 25 mm

Speed:2300 ± 10% RPM

Airflow:93.02 CFM (Min.)

Noise:44.5 dBA max

Bearing:Fluid Dynamic Bearing (FDB)

Operation

MTBF:100,000 hours

Temperature:0 - 50 °C

Dimensions

Width:150 mm

Height:86 mm

Depth:160 mm

General

Material(s):Steel, PCB and Plastic

Compliance Standard:ATX12V v3.1 / EPS12V v2.92

Regulation & Certification:FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus
