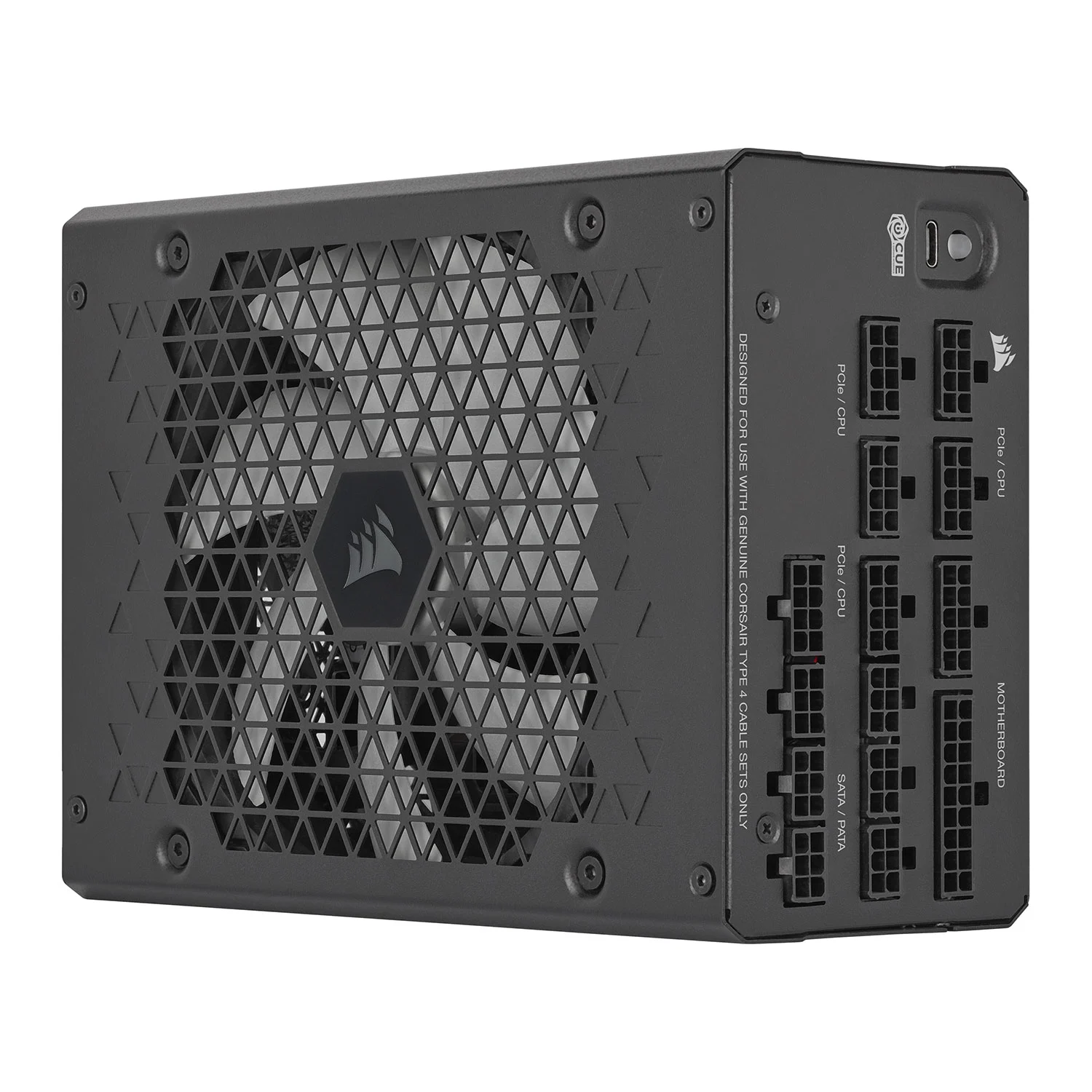

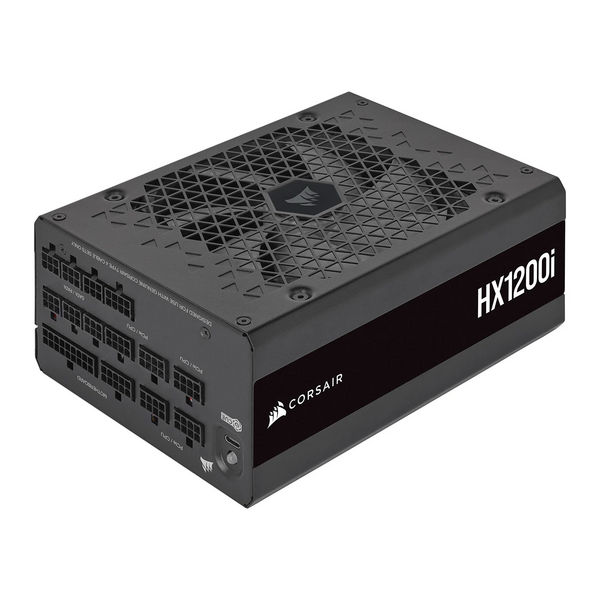

CORSAIR 1200W HX1200i V2 PSU, Fluid Dynamic Fan, Fully Modular, Ultra-Low Noise, 80+ Platinum, ATX 3.0, PCIe 5.0

Product Description
Delivery
Returns

Description

CORSAIR HXi Series Fully Modular Ultra-Low Noise Power Supplies deliver exceptional 80 PLUS Platinum efficient power and low-noise fluid dynamic bearing fan performance. ATX 3.0 and PCIe 5.0 compliance, HXi PSUs have every connection needed to power today’s most demanding PC upgrades. Powerful CORSAIR iCUE software enables custom fan curves, monitoring and adjusting power settings, and more thanks to a fully digital platform. Japanese 105°C-rated electrolytic capacitors deliver long life and reliability, backed by a tenyear warranty. Wake your computer faster and consume less power with Modern Standby sleep mode. Zero RPM mode ensures near-silent operation at low and medium loads. The HXi Series puts platinum power at your command.

Fully Modular Cabling:

Connect only the cables your system needs, making clean and tidy builds easy.

Intel® ATX 3.0 Certified:

Compliant with the ATX 3.0 power standard, supporting the PCIe Gen 5 platform and resisting transient power spikes.

140mm Fluid Dynamic Bearing (FDB) Fan:

Delivers extremely quiet and long-lasting fan performance.

Powerful CORSAIR iCUE Software:

Create custom fan curves,monitor power settings, and toggle between single to multi-rail overcurrent protection (OCP) on-the-fly.

Zero RPM Fan Mode:

At low and medium loads the cooling fan switches off entirely for near-silent operation.

80 PLUS Platinum Certified:

Up to 92% efficiency for exceptional low power consumption, less noise, and cooler temperatures.

100% Japanese 105°C Electrolytic Capacitors:

Premium internal components ensure unwavering power delivery and long-term reliability.

Modern Standby Compatible:

Extremely fast wake-from-sleep times and better low-load efficiency.

Fully Digital Platform:

Resonant LLC topology and DC-to-DC conversion provides clean, consistent power.

Ten-Year Warranty:

Your guarantee of reliable operation that will last across several system builds.

Specifications

Form Factor ATX 3.0
Edition HX1200i
Wattage 1200 W
Energy Efficiency Certification 80 PLUS Platinum
Max. Efficiency (at 230Vac) 92 %
Cooling Fan
Fans 1 x 140mm
Internal +12V Rails Single Rail
Rail 1 +12V 100 A
Max. Combined Output +12V 100 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 24-pin
Connectors
1 x 12+4-pin PCIe
2 x 4+4-pin CPU +12V (EPS)
8 x 4-pin Molex
4 x 6+2-pin PCIe
8 x SATA
1 x USB Type-C
Dimensions 150 x 86 x 200 (WxHxD)
Package Type Retail
Warranty 10 Year
