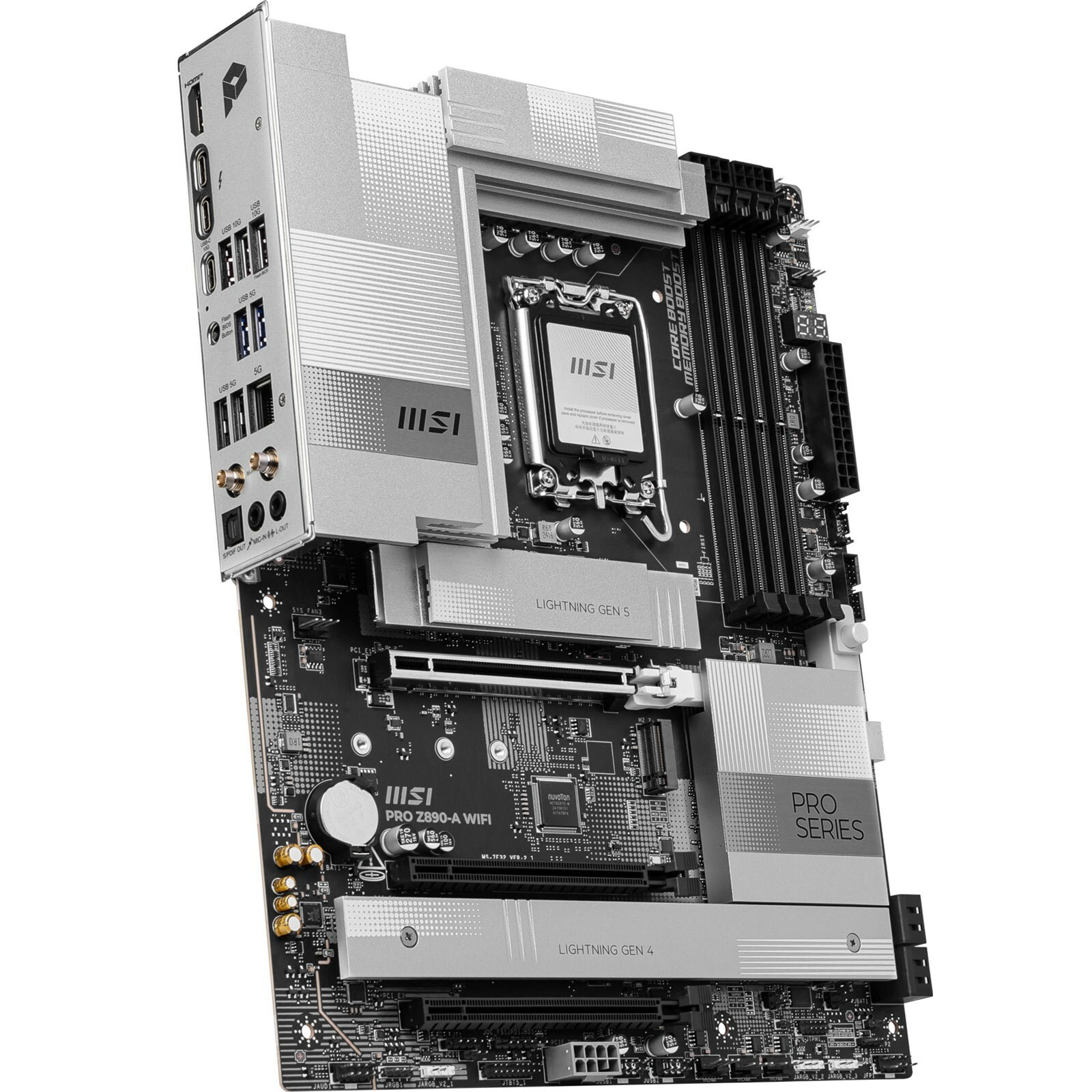

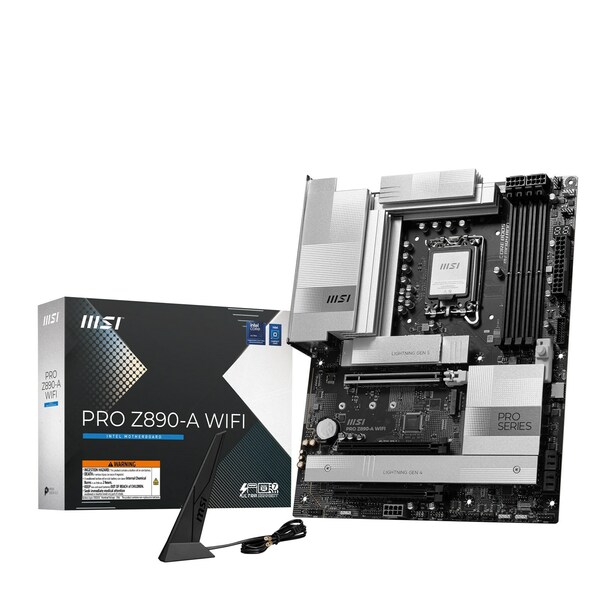

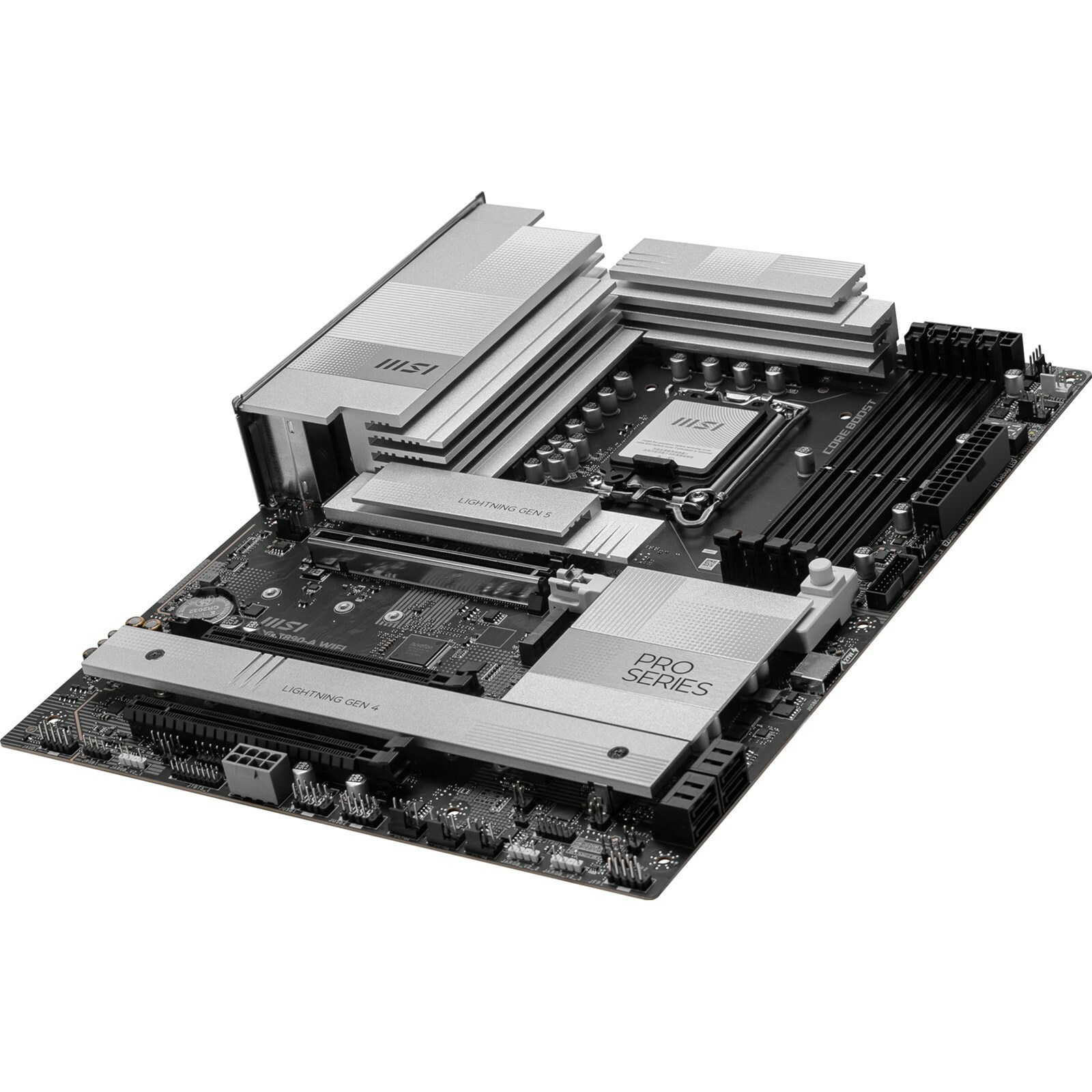

MSI PRO Z890-A WIFI ATX Motherboard for Intel LGA1851 CPUs

Description

MSI PRO Z890-A WIFI ATX Motherboard for Intel LGA1851 CPUs

PRO Z890-A WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI including true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.

Key Features

Intel Z890 Chipset
LGA 1851 Socket
Motherboard Support: ATX
Lightining Gen 5 Transfer Speed
Intel Wi-Fi 7, Bluetooth 5.4
Pre-Installed I/O Shielding
Frozr AI Cooling
Thunderbolt 4 | 5G Network Solution
Black Colour
1 Year Warranty
PRO Z890-P WIFI

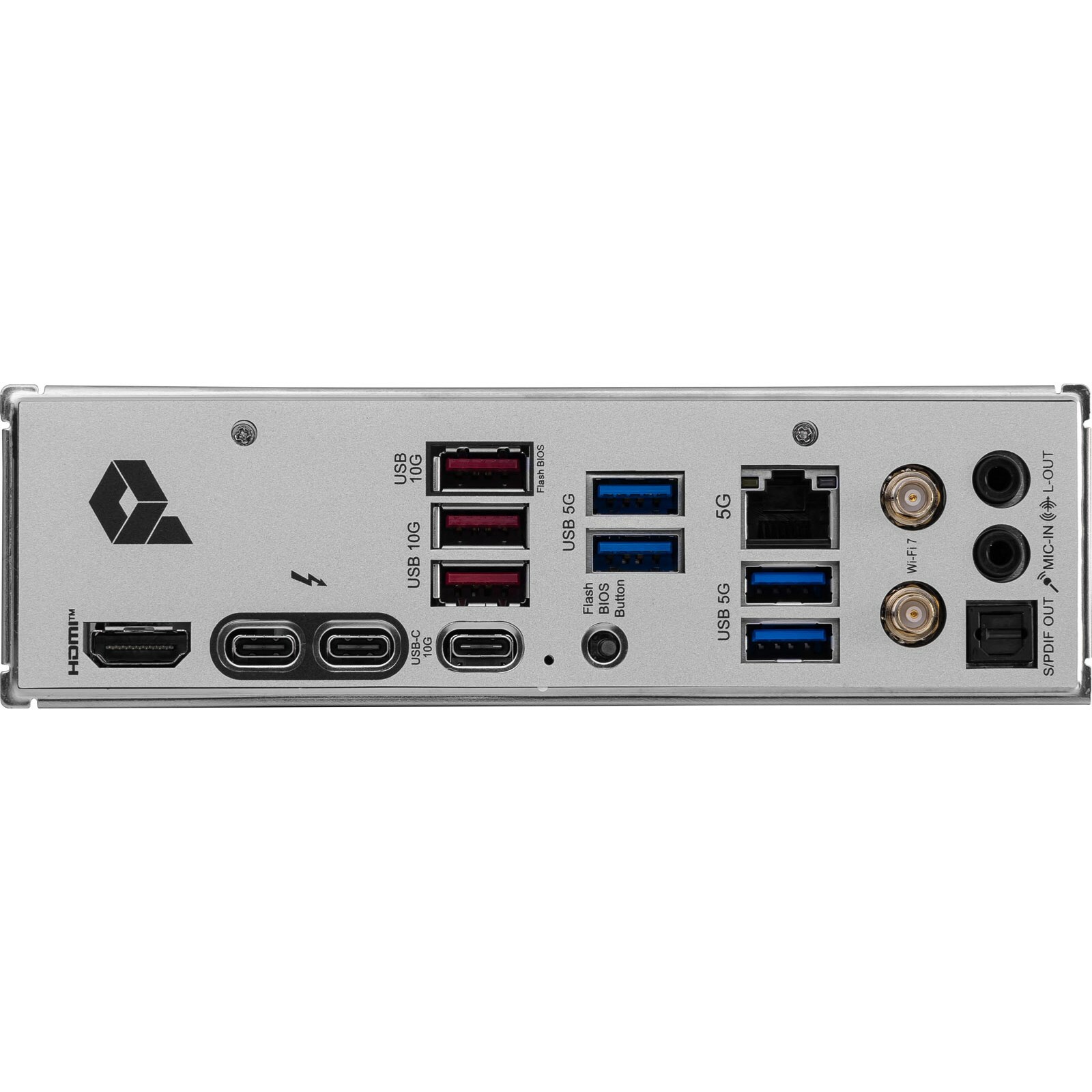

HDMI | USB | Thunderbolt 4


The PRO Z890-A WIFI is a creation-oriented ATX motherboard with a 16 Duet Rail Power System, constructed around the latest Intel Z890 chipset which supports Intel Core Ultra Processors (Series 2), featuring PCIe 5.0, 5G LAN, Wi-Fi 7, DDR5 and Frozr design that delivers the capacity to support a broad spectrum of both cutting-edge and innovative hardware.

Supports Intel Core Ultra Processors (Series 2)
The PRO Z890-A WIFI motherboard supports Intel Core Ultra Processors (Series 2).

Form Factor: ATX
Socket Type: LGA 1851
Chipset: Intel Z890

Ultra Power - 16 Duet Rail Power System with 90A Smart Power Stage
With exclusive Core Boost technology and EZ OC Tuning functions, the PRO Z890-A WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:

Digital PWM IC 16 Duet Rail Power System (90A / SPS)
1-Phase SA Power
1-Phase GT Power
1-Phase VNNAON Power

Frozr Design
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.

Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
