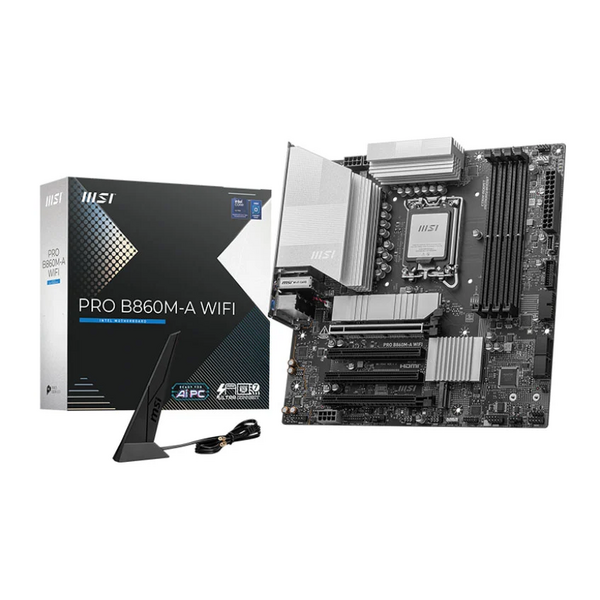

MSI 1851 PRO B860M-A WIFI - Micro ATX Motherboard For Intel LGA1851 CPUs

Description

MSI 1851 PRO B860M-A WIFI - Micro ATX Motherboard For Intel LGA1851 CPUs

Model Name PRO B860M-A WIFI
CPU Support Support Intel® Core™ Ultra Processors (Series 2)
CPU Socket LGA 1851
Chipset Intel® B860 Chipset
Expansion Slots 1x PCIe 5.0 x16 slot
1x PCIe 4.0 x16 slot
2x PCIe 4.0 x1 slots
Display Interface 1x Thunderbolt™ 4 (Type-C)
Support 4K@60Hz as specified in HDMI™ 2.1
DisplayPort 1.4 - Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 - 8600+ MT/s (OC)
Storage 1x M.2 Gen5 x4 128Gbps slot
1x M.2 Gen4 x4 64Gbps slot
1x M.2 Gen4 x2 32Gbps slot
4x SATA 6Gbps ports
Thunderbolt™ 4 1x USB Type-C up to 40Gbps
Charging support up to 5V/3A, 15W
USB Ports 2x USB 10Gbps (1 Type-A + 1 Type-C)
7x USB 5Gbps (6 Type-A + 1 Type-C)
6x USB 2.0
LAN Realtek® 8126 5G LAN
WiFi / BT Intel® WiFi 7, Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost
