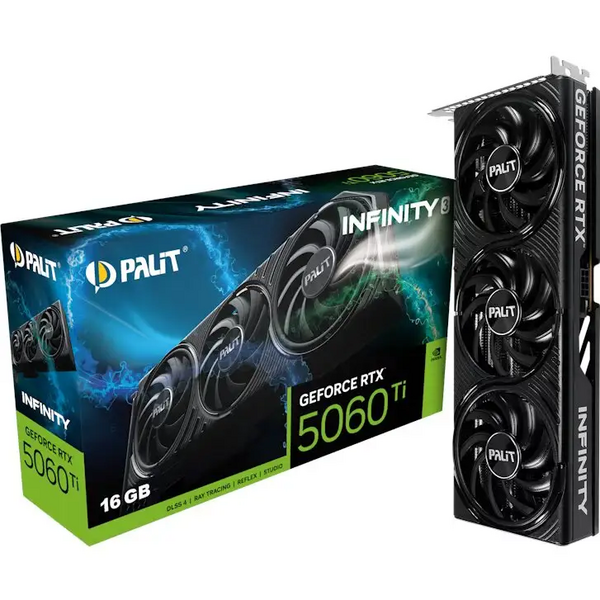

PALIT GeForce RTX 5060 Ti Infinity 3 16GB GDDR7 PCI-Express Graphics Card

Description

Palit GeForce RTX 5060 Ti Infinity 3 16GB GDDR7 PCI-Express Graphics Card

Features
Dedicated Ray Tracing Cores
Dedicated Tensor Cores
NVIDIA DLSS
Game Ready and NVIDIA Studio Driver
NVIDIA® APP
NVIDIA Broadcast
NVIDIA G-SYNC®
PCI Express® Gen 5
Microsoft DirectX® 12 Ultimate
Vulkan 1.4, OpenGL 4.6
HDCP 2.3
DisplayPort 2.1b with UHBR20: up to 4K 480Hz or 8K 165Hz with DSC
HDMI 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR
PCI Express-compliant motherboard with one dual-width x16 graphics slot
600 W or greater PSU with ATX 3.X spec
One 8-pin supplementary power connector
Microsoft Windows® 11, Windows® 10 64-bit, Linux 64-bit

Specifications

Adaptive Sync Technology (G-SYNC / FreeSync)    NVIDIA G-SYNC
Lighting / RGB    No
Colour : Primary Colour    Black
AI: AI Acceleration    Yes
AI Accelerator    Tensor Cores

Dimensions
Length / Depth    291.9 mm
Width    116.6 mm
Height    41.3 mm

Expansion Slots
Expansion Slots Required    2 Slots

Graphics Card
GPU Series    RTX 50 Series

Cooling
Number of GPU Fans    3

Clock Speeds
Max. GPU Clock (Base)    2407 MHz
Max. GPU Clock (Boost)    2572 MHz
Max. Memory Clock    28000 MHz

External Ports
Display Connectors    HDMI (1x), Display Port (3x)

Internal Ports
Required Power Connectors    8-pin PCIe (1x)

GPU Model
GPU Series Name    NVIDIA GeForce RTX 5060 Ti 16GB
Graphics Chip    GB206-300
Manufacturing Process    5 nm
Shader Units    4608
Tensor Cores    144
Raytracing Cores / Ray Acceleratorss    36
GPU Memory Type    GDDR7
Slot Type Standard    PCIe 5.0
GPU Memory Size (GB)    16
GPU Memory Interface (bit)    128
GPU Memory Bandwidth (GB/s)    448
GPU Effective Memory Clock (MHz)    1750

Warranty
Warranty:  2 year Palit Warranty
