MSI RTX 5070 12G GAMING TRIO OC WHITE Blackwell Graphics Card

Description

PLAY HARD. STAY SILENT

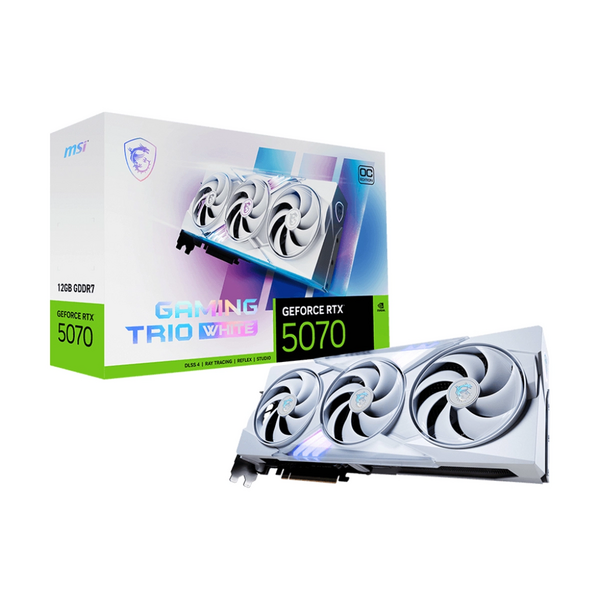

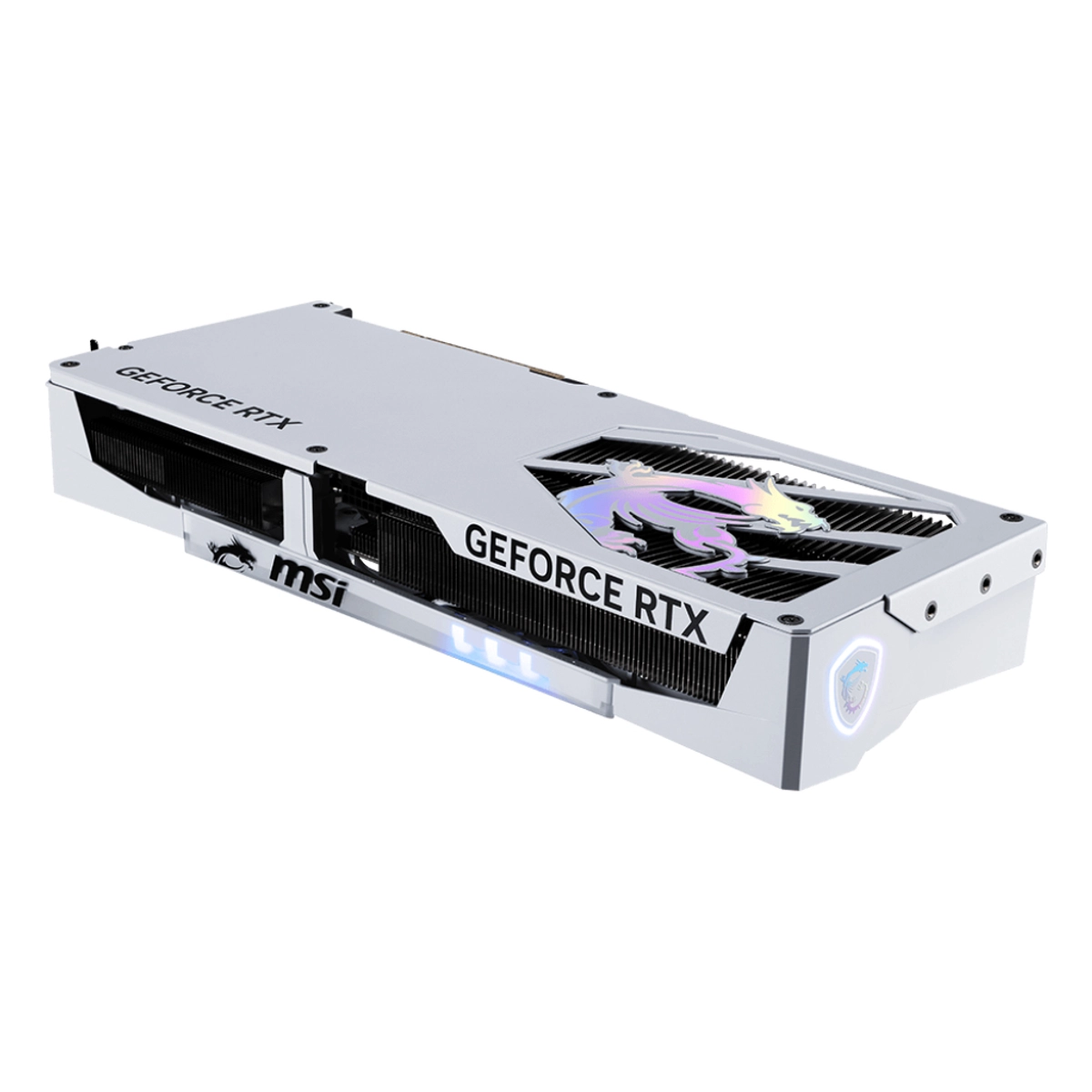

The MSI GeForce RTX 5070 12G GAMING TRIO OC WHITE is a high-performance graphics card featuring NVIDIA's GeForce RTX 5070 GPU based on the Blackwell architecture. It boasts 6144 CUDA cores and 12GB of GDDR7 memory with a 192-bit bus, operating at 28 Gbps. The card utilises the PCI Express 5.0 interface and offers three DisplayPort 2.1b and one HDMI 2.1b outputs, supporting up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, and HDR. MSI's TRI FROZR 4 thermal design incorporates STORMFORCE fans, a nickel-plate d copper baseplate, and core pipes for efficient cooling. The card measures 338 x 140 x 50 mm and features a metal backplate for reinforcement. It supports DirectX 12 Ultimate and OpenGL 4.6, and is equipped with a 16-pin power connector.

Specifications
Marketing Name    GeForce RTX™ 5070 12G GAMING TRIO OC WHITE
Model Name    G5070-12GTCW
Graphics Processing Unit    NVIDIA® GeForce RTX™ 5070
Interface    PCI Express® Gen 5
Core Clocks    Extreme Performance: 2625 MHz (MSI Center), Boost: 2610 MHz
CUDA® CORES    6144 Units
Memory Speed    28 Gbps
Memory    12GB GDDR7
Memory Bus    192-bit
Output    DisplayPort x 3 (v2.1b), HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support    Y
Power consumption    250 W
Power connectors    16-pin x 1
Recommended PSU    650 W
Card Dimension (mm)    338 x 140 x 50 mm
Weight (Card / Package)    1187 g / 1705 g
DirectX Version Support    12 Ultimate
OpenGL Version Support    4.6
Maximum Displays    4
G-SYNC® technology    Y
Digital Maximum Resolution    7680 x 4320
Warranty: 3 Year MSI Warranty
