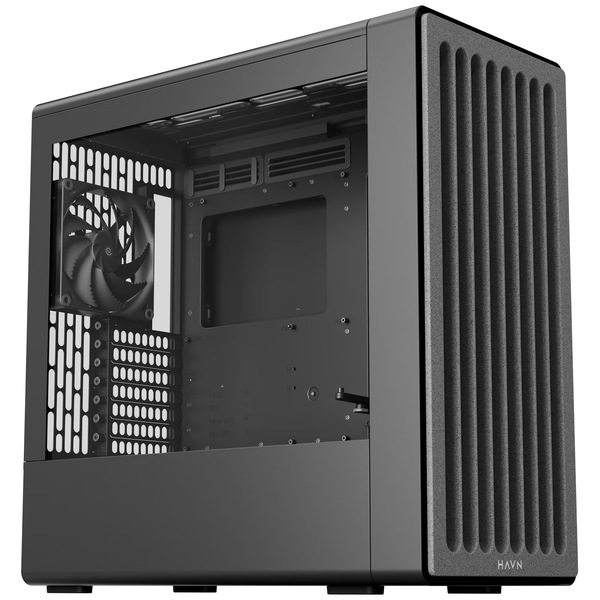

HAVN BF 360 Flow Premium Mid Tower Case - Black

Description

The HAVN BF 360 Flow PC Case will bring minimalist style and full coverage airflow to your gaming PC. Taking the best of the HS 420, this PC case is engineered to provide incredible hardware support while facilitating flexible cooling configurations and optimised thermal performance. There is ample support for both air and water-cooling hardware, and comes with two HAVN H18 and one HAVN H14 fans pre-installed. With a classic structure and modern refinements, the HAVN BF 360 Flow will make a great foundation for any gaming PC.

HAVN BF 360 Flow PC Case at a Glance:
Mid-tower PC case with semi-open frame design and tempered glass window
Full coverage airflow and aerodynamic funnelling
2 x HAVN H18 180mm and 1 x HAVN H14 140mm fans pre-installed
E-ATX motherboard, 410mm GPU, and ATX PSU support
Compatible with water-cooling hardware
Premium SGCC steel, reinforced in high-stress areas
Who is the HAVN BF 360 Flow PC Case Perfect For?
PC builders looking for best out-of-the-box cooling performance
Preference for AIO CPU cooling
Fans of elegant and minimalist designs

HAVN BF 360 Flow PC Case
Minimalist Elegance
With sleek modern curves and a classic structure, the HAVN BF 360 Flow PC Case is a stylish and functional addition to your gaming PC build. Manufactured from SGCC steel in an all-black finish, this mid-tower PC case has been reinforced on the high-stress areas to provide a strong and robust foundation for all your gaming hardware. The U-shaped structure ensures a rigid build, as well as smoother, more convenient assembly.

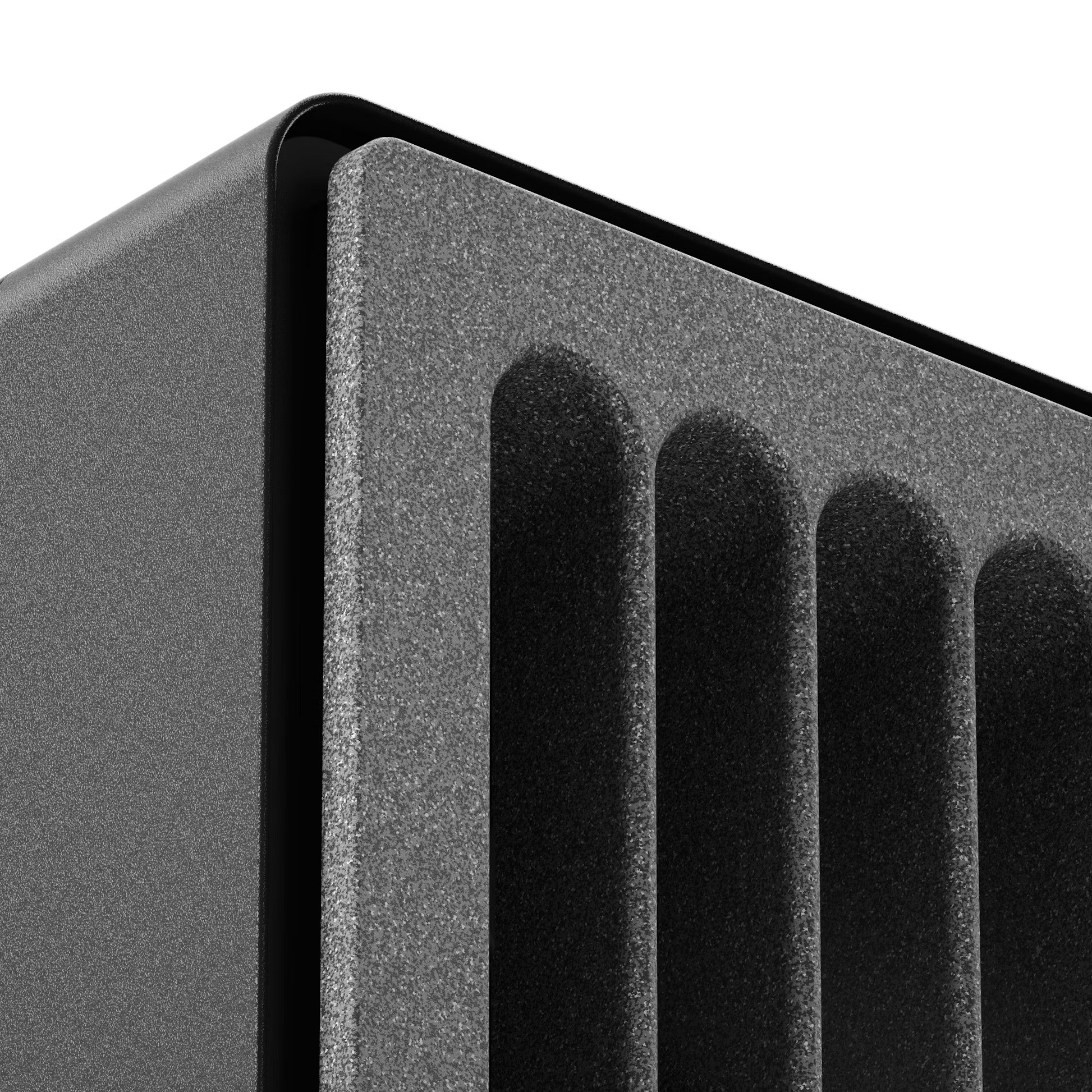

For a touch of luxury, the front panel has a five-layer stacked slate texture effect.

Full Coverage Airflow
To ensure incredible thermal performance, the HAVN BF 360 Flow PC Case has a semi-open design and provides full coverage airflow with aerodynamic features to effectively funnel air where you need it most. The front, top, and rear panels feature a rib pattern style ventilation, which maximises the airflow at a rate of 315.1CFM and minimises interference. Air is drawn in through the front and directed up a 135° ramp to directly cool your GPU and CPU. Waste heat is exhausted through the top and rear panel, providing incredible thermal efficiency.

HAVN BF 360 Flow PC Case
Bolstering the natural airflow, the HAVN BF 360 Flow PC Case supports a range of air and water-cooling components. In total, you can instal up to six fans, with a six channel PWM repeater to streamline control. Fans can be mounted to the front, top, and rear panels, enhancing the thermal aerodynamics. For those who like to experiment with fan configurations, both the front and top panel can support up to two 180mm fans. Alternatively, you can mount either three 120mm or two 140mm fans on the top, and there is space for a single 120mm or 140mm fan on the rear. The HAVN BF 360 Flow PC Case comes with two HAVN H18 180mm fans mounted to the front, and a single HAVN H14 140mm fan on the rear.

For water cooling enthusiasts, there is support for radiator mounting, as well. The front can accommodate a 420mm radiator, while the top fits one up to 360mm. Plus, there is 195mm clearance for CPU coolers and towers, ensuring you can equip your gaming PC with the thermal hardware you need.

Hardware Support
The HAVN BF 360 Flow PC Case has an intelligent internal layout to provide optimal compatibility with the current gaming hardware market. The motherboard tray can support E-ATX (up to 277mm wide), ATX, Micro-ATX, and Mini-ITX motherboards, while the space behind the ramp accommodates an ATX power supply up to 200mm long. For your GPU, there is up to 410mm clearance and an adjustable support bracket. This can be swivelled and configured in height and depth to best support your graphics card.

HAVN BF 360 Flow PC Case
The storage drive bays mount to the back of the motherboard tray. There are two available, and each can support either one 3.5” HDD or two 2.5” SSDs. This provides great potential for a flexible storage solution, with any combination of HDDs and SDDs to suit your needs.

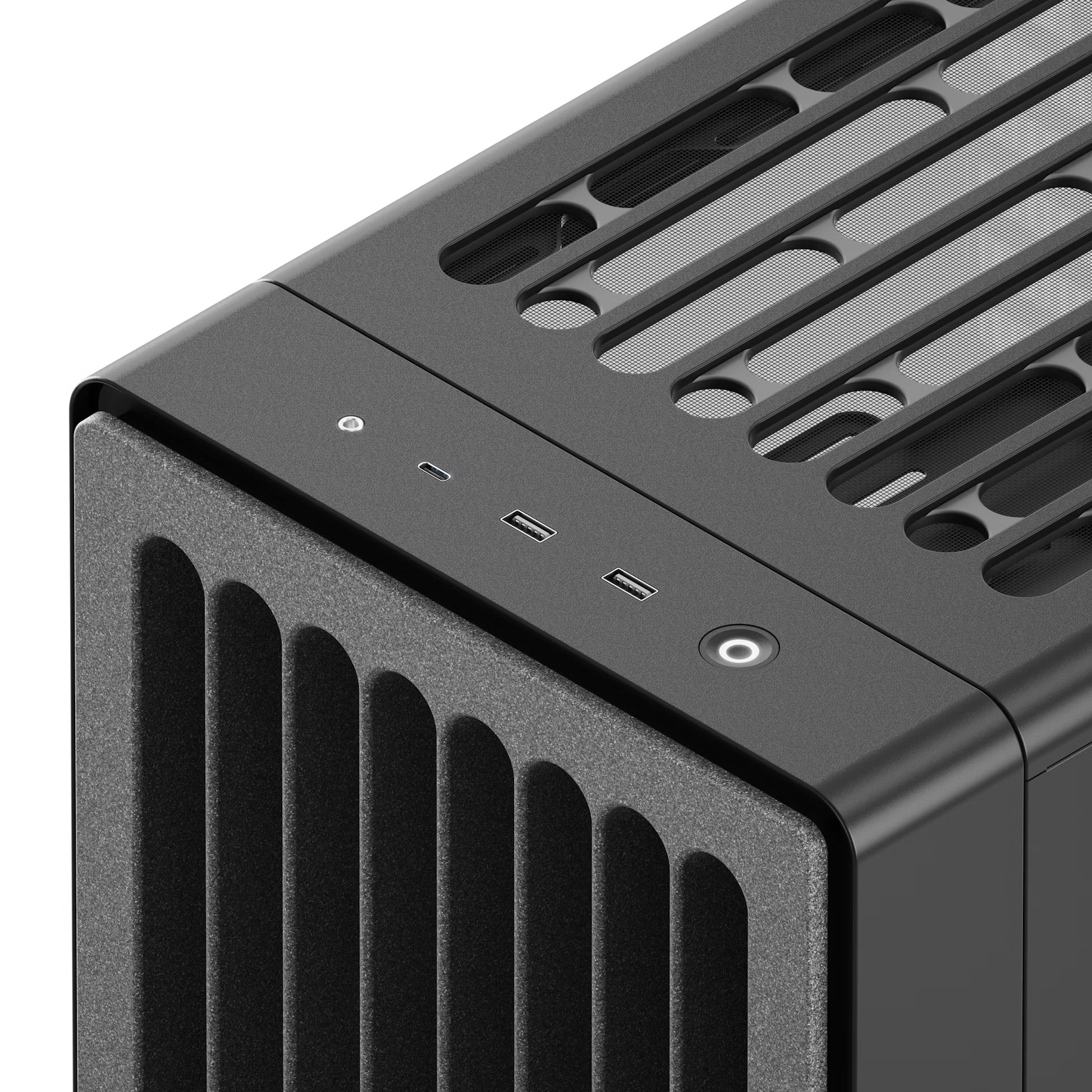

For easy connectivity, the I/O panel is at the front of the top panel. It features one USB 3.2 Gen 2 Type C port and two USB 3.2 Gen 2 Type A ports, along with HD audio and power.

Innovative Features
To simplify installation and maintenance, the HAVN BF 360 Flow PC Case comes with a range of innovative features. Much like the HS 420, this PC case utilises the SimpliCable routing system, marking ideal routes and the suitable cables. For ease of access, the front and top panels are magnetic, and there is even a pull loop on the top. Plus, the rubberised grooves along the right and left edge make removing panels easy and intuitive.

Many aspects of the HAVN BF 360 Flow PC Case feature vibration isolation. All the fan brackets are vibration dampened to reduce noise, featuring rubber isolation mounts to improve both stability and acoustics. There is even built-in vibration dampening on the storage bays to reduce their operational noise.

Every component of the HAVN BF 360 Flow PC Case has been carefully planned, designed, and executed to ensure ease of use and optimal performance.

Mounting
Internal Monitor Mount    No
Case VESA Mountable    No
Lighting
Lighting / RGB    No
Back Connect
Back Connect    No
Power Supply
PSU included    No
PSU Format    ATX
Power Supply Position    Internal
Case Features
I/O position    Top
Side panel    with window
Vertical GPU Mount    No
Adjustable Vertical GPU Bracket    No
Front door    No
Cable Management    Yes
Filters Included    Yes
Noise dampening    No
Mainboard slide / tray    Yes
Transport System    No
Internal Dimensions
Max. CPU Cooler Height    195 mm
Max. GPU Length    410 mm
Max. PSU Length / Depth    200 mm
Radiator Support
Max. Radiator Compatibility    360
Display
Display Included    No
Product Series
Product Series/Family    BF 360
Additional Contents
Included fans    1x 140 mm, 2x 180 mm
Motherboard Support
Compatible Motherboard Formats    E-ATX, ATX, Micro-ATX, Mini-ITX
Max. Motherboard Format    E-ATX
Dimensions
Length / Depth    515 mm
Width    254 mm
Height    522.6 mm
Weight    13.63 kg
Drive Bays
Max. 2.5 Inch Drives    4
Max. 3.5 Inch Drives    2
Max. 5.25 Inch Drives    0
Hot swap drive bays    No
Expansion Slots
Expansion slots / PCI slots    7
Fan Header
Fan Controller / Fan Hub    Yes
Materials
Materials    Plastic, Steel
Colour
Primary Colour    Black
Case
Case Type    Mid Tower
Compliance
Manufacturer Information    Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Responsible Person    Pro Gamersware GmbH
Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Features
Housing Feedthrough    No
Fan Support
Max. Number of Fans    6
External Ports
USB 3.2 (external) Type C    1
USB 3.0 (external) Type A    2
Audio outputs & inputs    1x output + 1x input (3.5 mm jack, 3-pin, TRS)
Card reader    No
Cable Specifications
Riser Cable Included    No
