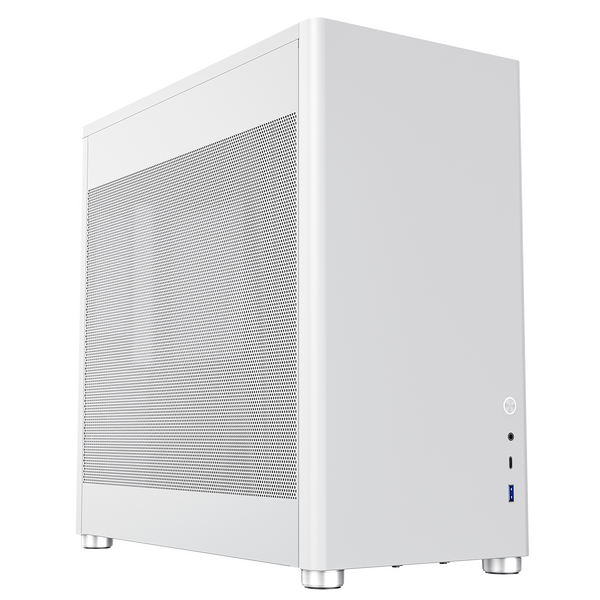

GAMEMAX Meshbox White Gaming Cube ATX Modular Gaming PC Case Dual Mesh Side Panels USB3.0 - Type C

Description

Chassis Dimensions (Excluding Fascia / Panels): (W) 203 x (H) 387 x (D) 380mm
Packaging Type: EPE Foam
EPE Foam Thickness: 31.43mm
Body Material: 0.8mm SPCC Exterior / 0.6mm SPCC Interior
PSU max. Length (mm): 300mm
Water Cooling Positions:
Top: 120mm / 240mm
Bottom: 120mm / 240mm
Rear: 120mm


Case Specifications


Form Factor: Midi Tower
Motherboard Support: ATX, Micro ATX, Mini ITX
PSU Support: Standard ATX
PSU Location: Front
Gaming Case: Yes
Water Cooling: Water Cooling Ready!
Supported Radiator Size: 240mm
Supported Radiator Positions: Top
Body Material: 0.8mm
Front Bezel Material: Metal
Side Panel: Metal (Mesh Vented)
Internal Cable Management Depth: 25mm
External Bays:
Internal Bays: 1 x 3.5” Internal
4 x 2.5” Internal
Drive Bay Notes: 1 x 2.5 SSD and 1 x 3.5 HDD share bottom right fan position
Expansion Slots: 7 x Full Size
Cooling Front: None
Cooling Top: Space For 2 x 120mm or 2 x 140mm Fans
Cooling Rear: Space For 1 x 120mm Fan
Cooling Side: None
Cooling Bottom: Space For 3 x 120mm or 2 x 140mm Fans
Fan Controllers: 0 Fan Controllers, controlling up to
0 fans in total
IO Ports: 1 x USB 3.1 Type C
1 x USB 3.0
1 x HD Audio
1 x Microphone
GPU Max Length: 355mm
CPU Cooler Maximum Height: 168mm
Front Bezel Colour: White
Body Colour: White
System Cabinet Features:
PSU Included: No

General Specifications


Manufacturer Part Number: GMX-MESHBOX-W
EAN Number: 6931858775441
Has Mains Plug: No
Colour: White
What`s In The Box: Case
Screw Pack
Manual
Unit (Product) Dimensions (mm): 203mm x 400mm x 401mm (W x H x D)
Packaging Dimensions (mm): 283mm x 476mm x 480mm (W x H x D)
Net Weight (KGs): 4.8 KGs
Gross Weight (KGs): 5.8 KGs
