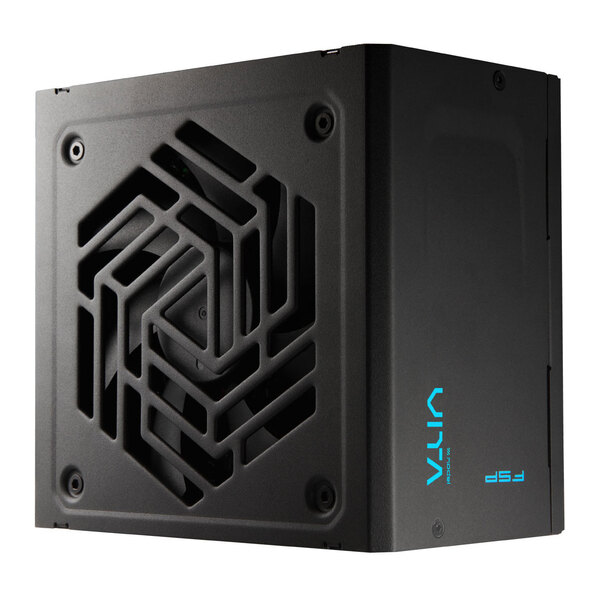

FSP 850W VITA BD 80 PLUS Bronze ATX 3.1 Power Supply

Description

Powering the Next Gen
The FSP VITA BD 850W is a high-performance power supply that complies with the latest ATX 3.1 standard, supporting up to 200% power excursions. It features a robust single +12V rail, premium black flat cables, and a high-quality bulk capacitor for reliability under harsh conditions. Certified 80 PLUS Bronze, it ensures efficient, quiet operation with comprehensive protections and an optimised 120mm cooling fan, making it ideal for future hardware upgrades.

ATX 3.1 Specification
Complies with Intel® Power Design Guide ATX 3.1
VITA BD series is compatible with ATX 3.1, supporting up to 200% power excursion - and the new PCIe 12V-2x6 connector ensures peak performance with future hardware upgrades.

High Efficiency Bronze-Certified
Certified by world-class 80 PLUS ® 230V EU Bronze for lower power loss, less heat, and quieter operation.

Premium Bulk Capacitor
The bulk capacitor inside serves to support high temperatures and peak voltage fluctuations. It stabilises the performance for high reliability that your system can count on.

Powerful Single +12V Rail
Modern CPUs and graphics cards can draw great power, especially during peak loads. A single +12V rail PSU offers a good balance of power delivery and stability.

+5V & 3.3V DC to DC Circuit Design
Increases efficiency and stabilises output voltage to ensure system stability.

Fortress-Level Protection
OVP
Over Voltage Protection

OCP
Over Current Protection

OPP
Over Power Protection

OTP
Over Temperature Protection

SCP
Short Circuit Protection

UVP
Under Voltage Protection

SIP
Surge and Inrush Protection

NLO
No-Load Operation


Specifications
Form Factor    ATX 3.1
Edition    FSP VITA BD
Wattage    850 W
Energy Efficiency Certification    80 PLUS Bronze
Max. Efficiency (at 230Vac)    88 %
Cooling    Fan
Fans    1 x 120mm
Internal +12V Rails    Single Rail
Rail 1 +12V    70.8 A
Max. Combined Output +12V    N/A
Modular    Yes
Modularity    Fully Wired
Motherboard Connector    24-pin
Connectors
1 x 12V-2x6
1 x 4+4-pin CPU +12V (EPS)
2 x 4-pin Molex
4 x 6+2-pin PCIe
1 x 8-pin CPU +12V (EPS)
6 x SATA
Dimensions    150 x 86 x 140 (WxHxD)
Package Type    Retail
Warranty    5 Year
