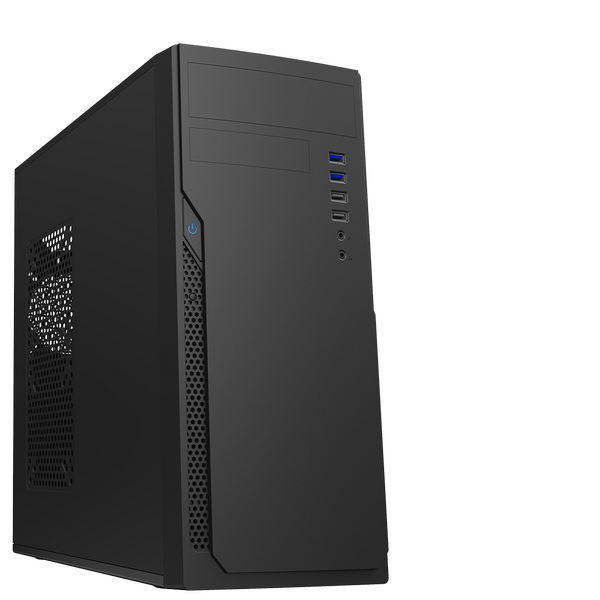

CIT Clasic Black ATX Midi Tower With 500W Basic PSU

Description

Description

The CiT Classic Midi is a compact ATX chassis design that supports both Micro ATX and ATX motherboards, it is aimed at business and home office solutions. The Classic Midi is equipped with 2 x USB 3.0 and 2 x USB 2.0 ports. The Classic Midi also supports a rear 80mm fan.

Key Features


•Storage Capacity - Case supports up to 3 x HDD's (2.5" or 3.5").
•Front I/O Ports - 2 x USB 2.0, 2 x USB 3.0 and HD Audio.
•VGA Support - Can take VGA cards up to 320mm in length.
•Motherboards - Supports ATX or Micro ATX motherboards.
•Side Panel - Intel TAC2.0 side panel vent hole design.


Specifications


PSU Rail Output (max.):
+3.3V: 28A
+5V: 30A
+12V: 27A
-12V: 0.3A
+5VSB: 2.5A
PSU Connectors & Qty:
20 + 4pin ATX Mainboard: 1
4pin +12V CPU: 1
SATA: 2
4pin Molex: 2
FDD: 1
:
Chassis Size (Without the Front panel and Side Panel): (W) 175 x (H) 405 x (D) 330mm


Case Specifications



Form Factor: Midi Tower
Motherboard Support: ATX, Micro ATX, Mini ITX
PSU Support: Standard ATX
PSU Location: Top
Gaming Case: No
Water Cooling: Not Water Cooling Ready

Body Material: 0.45mm Metal
Front Bezel Material: Plastic
Side Panel: Vented
Internal Cable Management Depth: 21mm
External Bays: 1 x 5.25” External
1 x 3.5” External

Internal Bays: 3 x 3.5” Internal
3 x 2.5” Internal

Drive Bay Notes: Can have 3 x 2.5" or 3 x 3.5" or mixture of both
Expansion Slots: 7 x Full Size

Cooling Front: None
Cooling Top: None
Cooling Rear: Space For 1 x 80mm Fan (1 x 80mm Fan inc.)
Cooling Side: Space For 2 x 80mm, 2 x 92mm or 2 x 120mm Fans
Cooling Bottom: Vent
IO Ports: 2 x USB 3.0
2 x USB 2.0
1 x HD Audio
1 x Microphone

GPU Max Length: 320mm
CPU Cooler Maximum Height: 145mm
Front Bezel Colour: Black
Body Colour: Black
System Cabinet Features: Supports Kensington Lock
PSU Included: Yes

General Specifications



Manufacturer Part Number: CIT CLASSIC MIDI
EAN Number: 5
