ADATA 1TB Legend 970 Gen5 M.2 NVMe SSD, M.2 2280, PCIe 5.0, 3D NAND, R/W 9500/8500 MB/s, Active Heat Dissipation

Description

Product Description

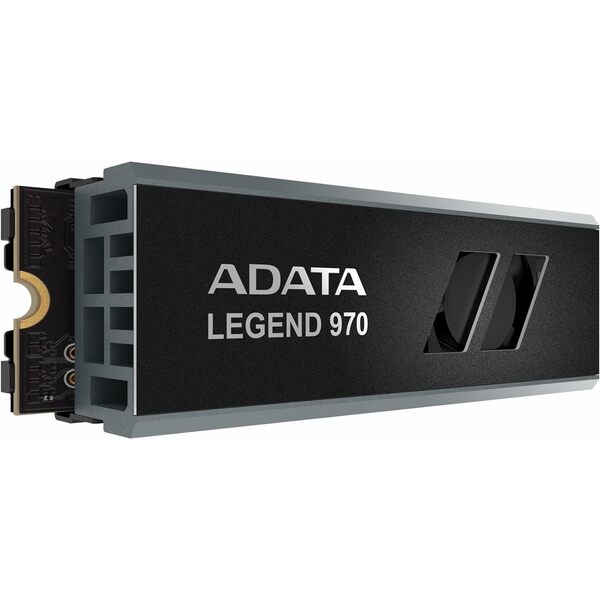

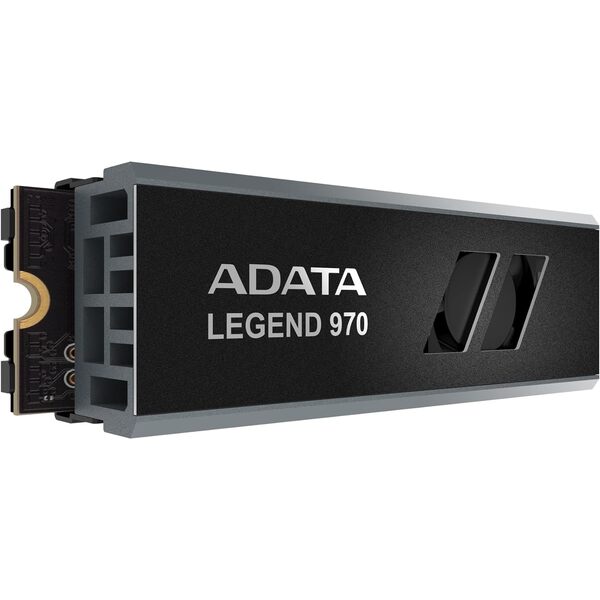

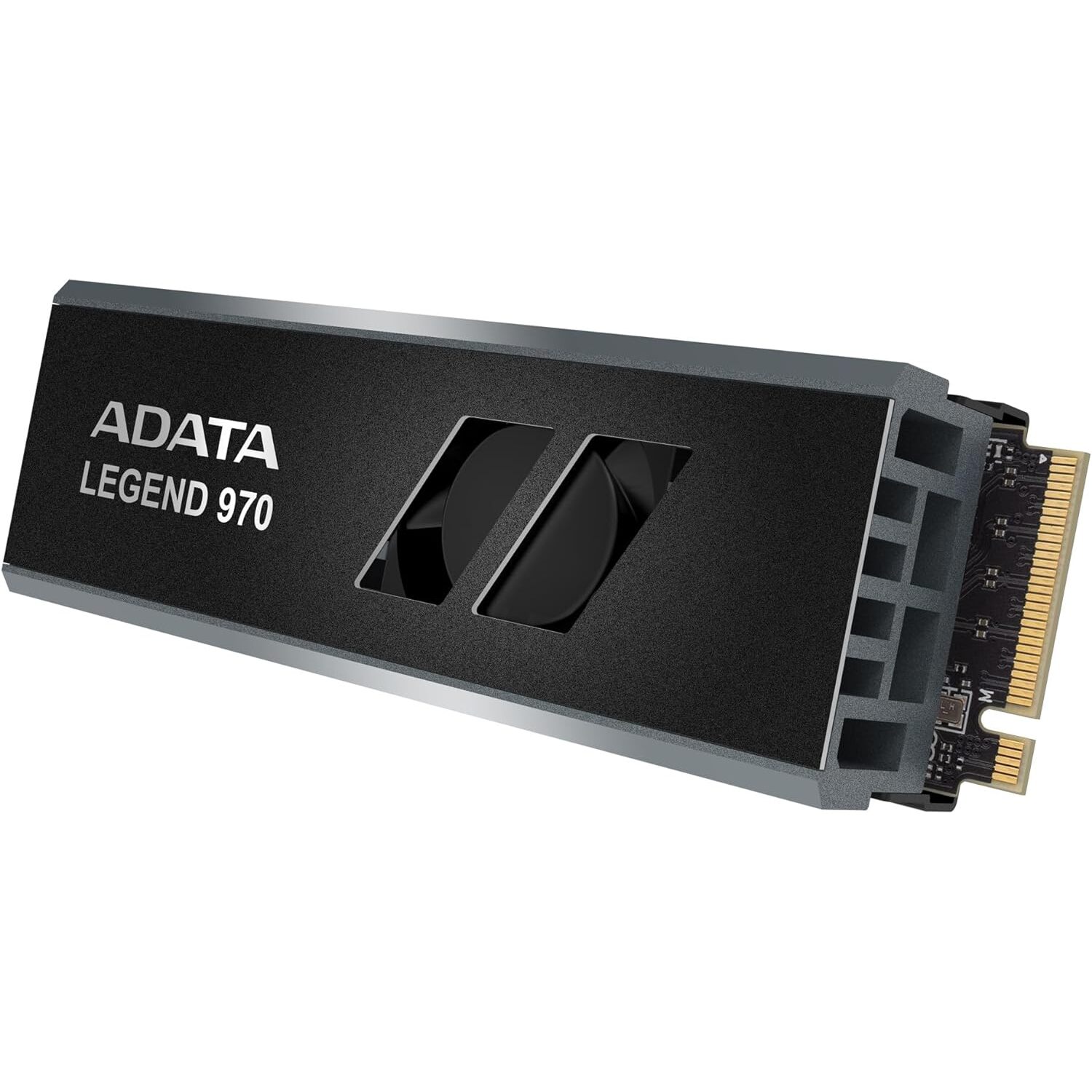

ADATA LEGEND 970 1TB Gen5 NVMe M.2 SSD

- Extraordinary Speed
The LEGEND 970 adopts the latest generation PCIe Gen5 x4 transmission interface and complies with the NVMe 2.0 standard to deliver amazing read and write capabilities. The LEGEND 970 also supports the latest Intel and AMD platforms. Whether in dynamic or static output, it always provides full performance.

- Unreal Performance
Complete every task in moments. The LEGEND 970 has a sequential read/write speed of 10,000/10,000MB per second, double the speed of PCIe Gen4 SSDs and 6 times faster than Gen3 SSDs, and is fully backward compatible with PCIe 4.0 and 3.0 platforms.

- Experts of Patented Heat Dissipation
When high efficiency is required, leave it to the professionals! The LEGEND 970 adopts dual-layer extruded aluminium fins¹ to create a dense air duct to divert hot and cold air. When heat is conducted upward, a built-in micro fan is used to remove thermal energy. This unique ``active heat dissipation`` design delivers significantly cooler temperatures than a fanless heatsink by 10%

- Surface Crystallization Improve Heat Dissipation
The LEGEND 970`s aluminium alloy fins are treated with surface crystallization, which utilizes its physical properties to increase the overall air contact area and maximize the effectiveness of its air cooling system.

- High Quality Memory Components
Strict selection of 232-layer 3D flash memory gives the LEGEND 970 a capacity of up to 2000GB and it utilizes a variety of data protection and correction technologies to increase total bytes written (TBW) and durability to meet various high-load requirements.

Form Factor: M.2 2280
Interface: PCIe 5.0 x4
Controller: Phison E26
Read: Up to 9500 Mb/s
Write: Up to 8500 Mb/s
Max Random 4K R/W1.3M / 1.4M IOPS
Weight/Dimensions: 57.1g
(LxWxH) 80.6 x 24.2 x 17.9 mm
Operating Temperatures: 0°C - 70°C
Storage Temperatures: -40°C - 85°C
Shock Resistance: 1500G/0.5ms
MTBF: 1,600,000 hours
Total Bytes Written: (TBW) 700TB
Warranty 5 Years or if the drive exceeds Total Bytes Written (see above)
