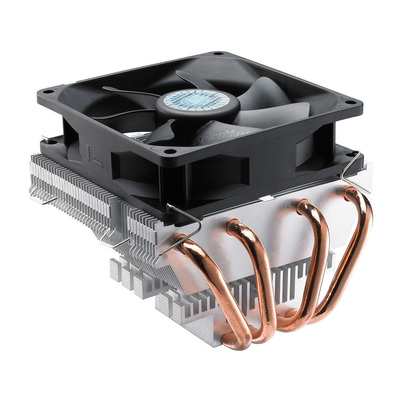

COOLERMASTER RR-VTPS-28PK-R1 Vortex Plus CPU Cooler

Vortex Plus is a low profile CPU cooler with compact size but uncompromising cooling efficiency. The compact feature best suits in HTPC chassis or chassis with slim width and limited space. The heatsink comes with 4 heatpipes and direct contact base to maximize the heat conductivity and dissipation efficiency. The balanced PWM fan works to provide high airflow under high RPM mode

•Compact profile design for HTPC chassis and LAN box chassis.
•Universal mounting for Intel LGA1366/1156/1155/775 and AMD AM3/AM2/940/939/754 sockets.
•4 x Direct Contact heatpipes for seamless contact between CPU surface and cooler.

CPU Socket

Intel Socket:
LGA 1366 / 1156 / 1155 / 775 *

AMD Socket:
FM1 / AM3+ / AM3 / AM2 / 940 / 939 / 754

CPU Support

Intel LGA 1366 / 1156 / 775 Socket CPU
- Core™ i7 Extreme
- Core™ i7
- Core™ i5
- Core™ i3
- Core™2 Extreme / Quad / Duo
- Pentium
- Celeron
AMD AM3 / AM2 / 940 / 939 / 754 Socket CPU
- Phenom™ II X4 / X3 / X2
- Phenom™ X4 / X3
- Athlon™ II X4 / X3 / X2
- Athlon™ X2
- Athlon™
- Sempron™

Dimension: 116 x 100 x 84 mm (4.6 x 3.9 x 3.3 inch)
Weight: 445g (1 lbs)
Heat Sink Material: Aluminum fins + 4 heatpipes
Fan Dimension: 92 x 92 x 25 mm (3.6 x 3.6 x 1 inch)
Fan Speed: 800 – 2800 RPM (PWM)
Fan Airflow: 15.7 – 54.8 CFM
Fan Air Pressure: 0.35-4.27 mm H2O
Bearing Type: Long life sleeve bearing
Fan Life Expectancy: 40,000 hours
Fan Noise Level (dB-A): 17 – 35 dBA
Connector: 4-pi
