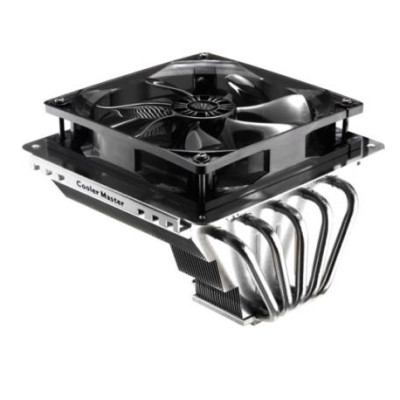

COOLERMASTER RR-G524-13FK-R1 GeminII SF524 CPU cooler

GeminII SF524 features a larger Heat sink for improved cooling performance, and increased memory module clearance to support high end memory modules featuring large Heat sinks of their own. It comes equipped with a modular 120mm fan with an ideal noise performance ratio throughout its supported range of rpm. It can be upgraded to a 140mm fan to further boost its cooling performance or opt for a super low noise, low rpm fan.

Balance cooling between CPU and components on the motherboard.

Higher ground clearance for better memory module compatibility.

Larger heatsink for better performance.

Super low fan speed (900 R.P.M. with Silent Mode Adapter) provides almost noiseless performance.

Compatible with 14cm fans (optional).

CPU Socket

Intel Socket:
LGA 1366 / 1156 / 1155 / 775 *
AMD Socket:
FM1 / AM3+ / AM3 / AM2+ / AM2

CPU Support

Intel:
Core™ i7 Extreme / Core™ i7 / Core™ i5 / Core™ i3 / Core™2 Extreme / Core™2 Quad / Core™2 Duo / Pentium / Celeron

AMD:
FX-Series / A-Series / Phenom™ II X4 / Phenom™ II X3 / Phenom™ II X2 / Phenom™ X4 / Phenom™ X3 / Athlon™ II X4 / Athlon™ II X3 / Athlon™ II X2 / Athlon™ X2 / Athlon™ / Sempron™

Dimension (W / H / D) 144 x 144 x 105 mm (5.7 x 5.7 x 4.1 inch)

Heat Sink Dimensions 144 x 144 x 78 mm (5.7x5.7x3.1 inch)

Heat Sink Material Copper Base / 5 Heat Pipes / Aluminum Fins

Heat Sink Weight 490g (1.08 lb)

Heat Pipes Dimensions ø6mm

Fan Dimension (W / H / D) 120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)

Fan Speed 1,300 RPM ± 10%
(900RPM with silent mode adapter)

Fan Airflow 52.6 CFM ± 10%
(36.4 @ 900RPM)

Fan Air Pressure 1.14 mmH2O ± 10%
(0.55 mmH2O @ 900RPM)

Fan Life Expectancy 40,000 hours

Fan Noise Level (dB-A) 22.5 dBA

Bearing Type Long Life Sleeve Bearing

Connector 3-Pin

Fan Rated Voltage 12 VDC

Fan Rated Current 0.10A

Power consumption 1.2W

Fan Weight 102g (0.23lb)
