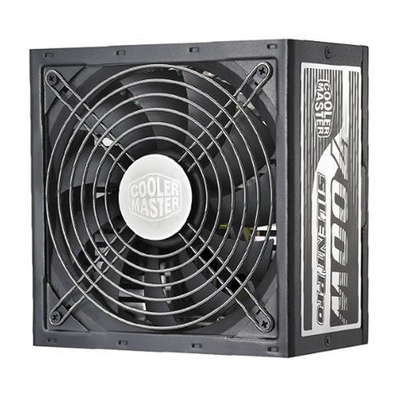

COOLERMASTER RS700-AMBD3-UK 700 Watt SIlent Modular - PSU
Product Number: 100032395
Product Code:
RS700-AMBD3-UK
Out of Stock
Not available to Collect In Store
Available for Pre-Order
£70.83ex vat
£84.99inc vat
Product Features and Technical Details
Product Features
The single rail is with up to 50A on the 12V rail
Modularized cable design to eli min ate clutter
Two 6+2 pin PCI-e connectors for multiple graphi
Energy efficient design that meats 80 Plus requi
Single +12V rail provides more power for over-cl
Energy efficient design that meets 80 Plus requirements
Single +12V rail provides more power for over-clockers
Compliant with Intel standard Intel ATX12V V2.3 & SSI EPS 12V V2.91
Green power design that meets energy star, blue angel requirements
Unique silicon pad eliminate the vibration between PSU and chassis
Technical Details
Type: Intel ATX12V V2.3 ? SSI EPS 12V V2.91
Dimension (WxDxH): 150 x 150 x 86 mm
Input Voltage: 90 - 264 V (Auto Range)
Input Current: 12A at 115 V ac, 6A at 230 V ac
Input Frequency Range: 47 - 63 Hz
PFC Active: PFC >0.9
Power Good Signal: 100 - 500 ms
Hold Up Time: >17 ms
Efficiency: 85 % Typically
MTBF: >100,000 hrs
Protection: OVP/ UVP/OCP/OPP/OTP /SCP/ OLP
Output Capacity: 700 W
Max. Output Capacity: 840 W
Operation Temperature: 0 - 40 deg. C (Nominal Input Voltage)
Regulatory: NEMKO, TUV, CE, GOST, C-tick, UL, FCC
Fan: 135 mm ultra silent fan
Certification: SLI, 80 Plus
Connector: M/B 20+4 Pin Connector x 1, CPU 4+4 Pin x 1, PCI-E 6+2 Pin x2, 4 Pin Peripheral x 5, SATA x 9, 4 Pin Floppy x 1
Product Features
The single rail is with up to 50A on the 12V rail
Modularized cable design to eli min ate clutter
Two 6+2 pin PCI-e connectors for multiple graphi
Energy efficient design that meats 80 Plus requi
Single +12V rail provides more power for over-cl
Energy efficient design that meets 80 Plus requirements
Single +12V rail provides more power for over-clockers
Compliant with Intel standard Intel ATX12V V2.3 & SSI EPS 12V V2.91
Green power design that meets energy star, blue angel requirements
Unique silicon pad eliminate the vibration between PSU and chassis
Technical Details
Type: Intel ATX12V V2.3 ? SSI EPS 12V V2.91
Dimension (WxDxH): 150 x 150 x 86 mm
Input Voltage: 90 - 264 V (Auto Range)
Input Current: 12A at 115 V ac, 6A at 230 V ac
Input Frequency Range: 47 - 63 Hz
PFC Active: PFC >0.9
Power Good Signal: 100 - 500 ms
Hold Up Time: >17 ms
Efficiency: 85 % Typically
MTBF: >100,000 hrs
Protection: OVP/ UVP/OCP/OPP/OTP /SCP/ OLP
Output Capacity: 700 W
Max. Output Capacity: 840 W
Operation Temperature: 0 - 40 deg. C (Nominal Input Voltage)
Regulatory: NEMKO, TUV, CE, GOST, C-tick, UL, FCC
Fan: 135 mm ultra silent fan
Certification: SLI, 80 Plus
Connector: M/B 20+4 Pin Connector x 1, CPU 4+4 Pin x 1, PCI-E 6+2 Pin x2, 4 Pin Peripheral x 5, SATA x 9, 4 Pin Floppy x 1
