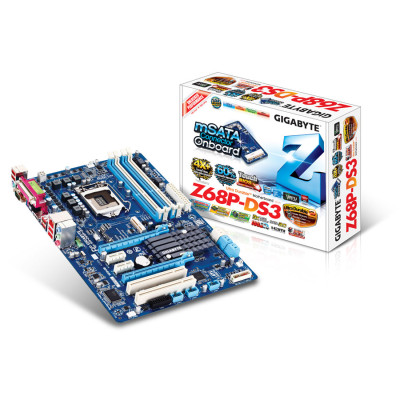

GIGABYTE Z68P-DS3 Intel Z68 (Socket 1155) DDR3 Motherboard
Product Number: 100033816
Product Code:
Z68P-DS3
Out of Stock
Not available to Collect In Store
Available for Pre-Order
£70.83ex vat
£84.99inc vat
Model Number:GA-Z68P-DS3
Package Type:Retail
Warranty:3 Years
BIOS:2 x 32 Mbit flash‚Use of licensed AWARD BIOS‚Support for DualBIOS‚PnP 1.0a‚DMI 2.0‚SM BIOS 2.4‚ACPI 1.0b
Chipset:Intel Z68 Express
CPU Interface:Socket 1155
CPU Support:http://www.gigabyte.com/support-downloads/cpu-support-popup.aspx?pid=3899
RAM Technology:DDR3 (Dual Channel)
RAM Slots:4 x 240-Pin
RAM Speeds:DDR3 1066‚DDR3 1333‚DDR3 1600‚DDR3 1866‚DDR3 2133
Max. Memory Support:32GB
Expansion Slots:1 x PCI Express 2.0 x16 (x16)‚1 x PCI Express 2.0 x16 (x4)‚2 x PCI Express 2.0 x1‚2 x PCI
Storage Controller(s):2 x S-ATA/600‚4 x S-ATA/300‚RAID 0‚RAID 1‚RAID 5‚RAID 10
On-Board LAN:1 x Realtek RTL8111E chip (10/100/1000 Mbit)
On-Board Audio:Realtek ALC889 codec‚High Definition Audio‚Support for S/PDIF Out
On-Board Video:Intel processor with integrated graphics is required
Back Panel I/O Ports:1 x PS/2 Keyboard/Mouse port‚1 x Parallel‚1 x COM‚1 x Optical S/PDIF Output‚1 x HDMI‚6 x USB 2.0‚1 x LAN‚3 x Audio
Internal I/O Connectors:1 x 24-pin ATX Power‚1 x 4 pin ATX 12V Power‚1 x mSATA connector‚1 x Front panel audio header‚1 x S/PDIF Out header‚3 x USB 2.0 headers‚1 x Trusted Platform Module (TPM) header
Form Factor:ATX‚305mm x 215mm
Gross Weight:1.32Kg
Special Features:Support for @BIOS‚Support for Q-Flash‚Support for Xpress BIOS Rescue‚Support for Download Center‚Support for Xpress Install‚Support for Xpress Recovery2‚Support for Smart 6‚Support for Auto Green‚Support for eXtreme Hard Drive (X.H.D)
Package Contents:Manual‚4 x S-ATA Data Leads‚Driver Disk‚Backplate
Package Type:Retail
Warranty:3 Years
BIOS:2 x 32 Mbit flash‚Use of licensed AWARD BIOS‚Support for DualBIOS‚PnP 1.0a‚DMI 2.0‚SM BIOS 2.4‚ACPI 1.0b
Chipset:Intel Z68 Express
CPU Interface:Socket 1155
CPU Support:http://www.gigabyte.com/support-downloads/cpu-support-popup.aspx?pid=3899
RAM Technology:DDR3 (Dual Channel)
RAM Slots:4 x 240-Pin
RAM Speeds:DDR3 1066‚DDR3 1333‚DDR3 1600‚DDR3 1866‚DDR3 2133
Max. Memory Support:32GB
Expansion Slots:1 x PCI Express 2.0 x16 (x16)‚1 x PCI Express 2.0 x16 (x4)‚2 x PCI Express 2.0 x1‚2 x PCI
Storage Controller(s):2 x S-ATA/600‚4 x S-ATA/300‚RAID 0‚RAID 1‚RAID 5‚RAID 10
On-Board LAN:1 x Realtek RTL8111E chip (10/100/1000 Mbit)
On-Board Audio:Realtek ALC889 codec‚High Definition Audio‚Support for S/PDIF Out
On-Board Video:Intel processor with integrated graphics is required
Back Panel I/O Ports:1 x PS/2 Keyboard/Mouse port‚1 x Parallel‚1 x COM‚1 x Optical S/PDIF Output‚1 x HDMI‚6 x USB 2.0‚1 x LAN‚3 x Audio
Internal I/O Connectors:1 x 24-pin ATX Power‚1 x 4 pin ATX 12V Power‚1 x mSATA connector‚1 x Front panel audio header‚1 x S/PDIF Out header‚3 x USB 2.0 headers‚1 x Trusted Platform Module (TPM) header
Form Factor:ATX‚305mm x 215mm
Gross Weight:1.32Kg
Special Features:Support for @BIOS‚Support for Q-Flash‚Support for Xpress BIOS Rescue‚Support for Download Center‚Support for Xpress Install‚Support for Xpress Recovery2‚Support for Smart 6‚Support for Auto Green‚Support for eXtreme Hard Drive (X.H.D)
Package Contents:Manual‚4 x S-ATA Data Leads‚Driver Disk‚Backplate
