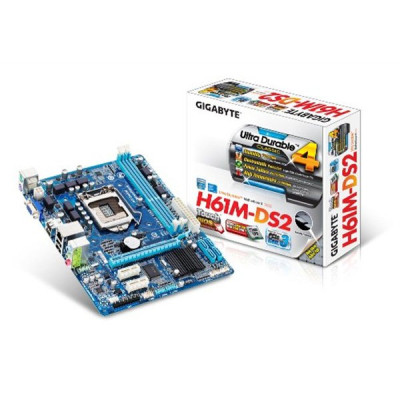

GIGABYTE H61M-DS2-B3 SKT-1155 with Sound + Lan, DDR3, Micro-ATX
Product Number: 100033726
Product Code:
H61M-DS2-B3
Available for Collect In Store
Available for Home Delivery
£37.49ex vat
£44.99inc vat
Model Number:GA-H61M-DS2
Package Type:Retail
Warranty:3 Years
BIOS:2 x 32 Mbit flash‚Use of licensed AWARD BIOS‚Support for DualBIOS‚PnP 1.0a‚DMI 2.0‚SM BIOS 2.4‚ACPI 1.0b
Chipset:Intel H61 Express
CPU Interface:Socket 1155
RAM Technology:DDR3 (Dual Channel)
RAM Slots:2 x 240-Pin
RAM Speeds:DDR3 800‚DDR3 1066‚DDR3 1333
Max. Memory Support:16GB
Expansion Slots:1 x PCI Express 2.0 x16 (x16)‚1 x PCI Express 2.0 x1
Storage Controller(s):4 x S-ATA/300
On-Board LAN:1 x Atheros GbE LAN chip (10/100/1000 Mbit)
On-Board Audio:Realtek audio codec‚High Definition Audio
On-Board Video:Intel processor with integrated graphics is required
Back Panel I/O Ports:1 x PS/2 Keyboard‚1 x PS/2 Mouse‚1 x VGA‚4 x USB 2.0‚1 x LAN‚3 x Audio
Internal I/O Connectors:1 x 24-pin ATX Power‚1 x 4 pin ATX 12V Power‚1 x Front panel audio header‚2 x USB 2.0 header‚1 x Parallel port header‚1 x COM port connector
Form Factor:Micro ATX‚226mm x 174mm
Gross Weight:0.80Kg
Special Features:GIGABYTE Ultra Durable 4 Classic‚Humidity Protection‚Electrostatic Protection‚Power Failure Protection‚High Temperature Protection‚Support Intel 22nm processors and PCI Express Gen.3‚GIGABYTE Touch BIOS
Package Contents:Motherboard‚Manual‚2 x S-ATA Data Leads‚Backplate‚Driver Disk
Package Type:Retail
Warranty:3 Years
BIOS:2 x 32 Mbit flash‚Use of licensed AWARD BIOS‚Support for DualBIOS‚PnP 1.0a‚DMI 2.0‚SM BIOS 2.4‚ACPI 1.0b
Chipset:Intel H61 Express
CPU Interface:Socket 1155
RAM Technology:DDR3 (Dual Channel)
RAM Slots:2 x 240-Pin
RAM Speeds:DDR3 800‚DDR3 1066‚DDR3 1333
Max. Memory Support:16GB
Expansion Slots:1 x PCI Express 2.0 x16 (x16)‚1 x PCI Express 2.0 x1
Storage Controller(s):4 x S-ATA/300
On-Board LAN:1 x Atheros GbE LAN chip (10/100/1000 Mbit)
On-Board Audio:Realtek audio codec‚High Definition Audio
On-Board Video:Intel processor with integrated graphics is required
Back Panel I/O Ports:1 x PS/2 Keyboard‚1 x PS/2 Mouse‚1 x VGA‚4 x USB 2.0‚1 x LAN‚3 x Audio
Internal I/O Connectors:1 x 24-pin ATX Power‚1 x 4 pin ATX 12V Power‚1 x Front panel audio header‚2 x USB 2.0 header‚1 x Parallel port header‚1 x COM port connector
Form Factor:Micro ATX‚226mm x 174mm
Gross Weight:0.80Kg
Special Features:GIGABYTE Ultra Durable 4 Classic‚Humidity Protection‚Electrostatic Protection‚Power Failure Protection‚High Temperature Protection‚Support Intel 22nm processors and PCI Express Gen.3‚GIGABYTE Touch BIOS
Package Contents:Motherboard‚Manual‚2 x S-ATA Data Leads‚Backplate‚Driver Disk
