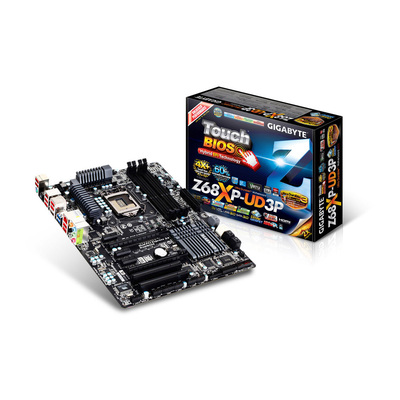

GIGABYTE GA-Z68XP-UD3P Intel Z68 (Socket 1155) DDR3 Motherboard

Product Name:GA-Z68XP-UD3P
Web Address:www.gigabyte.com
Model Number:GA-Z68XP-UD3P
Package Type:Retail
Warranty:3 Years
BIOS:Realtek ALC889 codec‚High Definition Audio‚Support for Dolby Home Theater‚Support for S/PDIF Out
Chipset:Intel Z68 Express
CPU Interface:Socket 1155
RAM Technology:DDR3 (Dual Channel)
RAM Slots:4 x 240-Pin
RAM Speeds:DDR3 1066‚DDR3 1333‚DDR3 1600‚DDR3 1866‚DDR3 2133
Max. Memory Support:32GB
Expansion Slots:2 x PCI Express 2.0 x16 (x16, x0 or x8,x8)‚3 x PCI Express 2.0 x1‚2 x PCI
Storage Controller(s):2 x S-ATA/600‚4 x S-ATA/300‚RAID 0‚RAID 1‚RAID 5‚RAID 10‚2 x S-ATA/600‚RAID 0‚RAID 1
On-Board LAN:1 x Realtek RTL8111E chip (10/100/1000 Mbit)
On-Board Audio:Realtek ALC889 codec‚High Definition Audio‚Support for Dolby Home Theater‚Support for S/PDIF Out
On-Board Video:Integrated in the Chipset
Back Panel I/O Ports:1 x PS/2 Keyboard/Mouse port‚1 x Optical S/PDIF Output‚1 x IEEE1394‚1 x HDMI‚8 x USB 2.0‚2 x USB 3.0‚1 x LAN‚6 x Audio
Internal I/O Connectors:1 x 24-pin ATX Power‚1 x 8 pin ATX 12V Power‚1 x Front panel audio header‚1 x S/PDIF out header‚3 x USB 2.0 header‚1 x USB 3.0 header‚1 x IEEE 1394a header‚1 x COM header‚1 x Trusted Platform Module (TPM) header
Form Factor:ATX‚305mm x 244mm
Gross Weight:1.56Kg
Special Features:Support for @BIOS‚Support for Q-Flash‚Support for Xpress BIOS Rescue‚Support for Download Center‚Support for Xpress Install‚Support for Xpress Recovery2‚Support for Dynamic Energy Saver 2‚Support for Smart 6‚Support for Auto Green
Package Contents:User Guide‚4 x S-ATA Data Leads‚1 x SLI Bridge‚Backplate‚Driver CD
