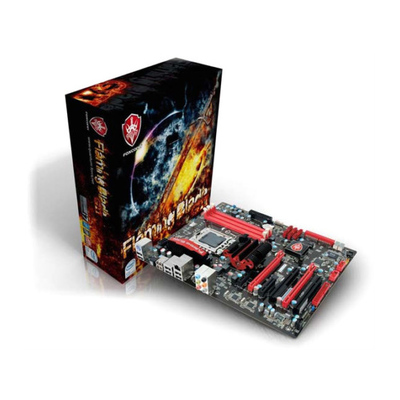

FOXCONN FBGTIX58 Flaming Blade GTI X58 Motherboard

Processor: Supports the newest Intel® Core ™ i7 and Core™i7 Extreme (Bloomfield) processors, Socket T (LGA1366)
Chipset: INTEL X58
Memory: Triple channel DDR3 1800, Max. 12GB
Expansion Slots: 2* PCIe2.0 x16, 1* PCIe2.0 x1, 2* PCI
IDE: 1* ATA133
Serial ATA(SATA)/RAID: 6* SATAII w / RAID 0, 1, 10, 5, JBOD
Audio: 7.1 channel HDA
LAN: Gigabit LAN
Back Panel I/O Ports: 1 x PS/2 keyboard port
1 x S/PDIF Out Fiber port
8 x USB 2.0 ports
1 x RJ45 LAN ports


Internal I/O Connectors: 1 x ATX 24-pin power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin power connector
3 x Onboard On/Off/CMOS reset buttons
3 x 3-pin power fan connectors
1 x CD-in connector
1 x Front Panel header
2 x USB 2.0 headers support additional 6 ports
6 x Serial ATAII connectors
1 x ATA133 IDE connector
1 x Onboard power_LED
1 x Intrusion Alarm header
1 x Intel Azalia header
1 x COM1 header
1 x IrDA header
1 x Speaker
Support CD: Drivers, Adobe Reader, SuperUtilities,
Form Factor: ATX (12" x 9.6")
