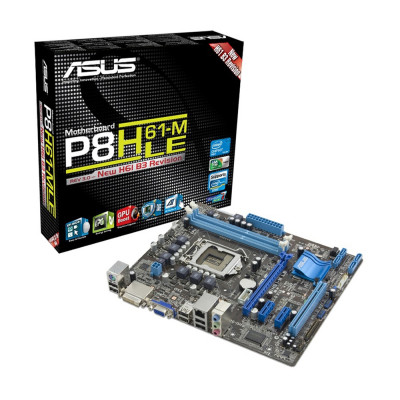

ASUS P8H61-M-LE Intel H61 Chipset (Socket 1155) DDR3 Motherboard Micro ATX

Model Number:P8H61-M LE REV 3.0
Package Type:Retail
Warranty:3 Years
BIOS:32Mb Flash ROM
EFI BIOS
PnP
DMI 2.0
WfM 2.0
ACPI 2.0a
SM BIOS 2.6
Multi-language BIOS
Chipset:Intel H61(B3) Express
CPU Interface:Socket 1155
Max. CPU Support:Core i3 2120
Core i5 2500T
Core i7 2600S
RAM Technology:DDR3 (Dual Channel)
RAM Slots:2 x 240-Pin
RAM Speeds:DDR3 1066
DDR3 1333
Max. Memory Support:16GB
Expansion Slots:1 x PCI Express 2.0 x16
2 x PCI Express 2.0 x1
1 x PCI
Storage Controller(s):4 x S-ATA/300
On-Board LAN:Realtek 8111E Gigabit LAN controller
On-Board Audio:Realtek ALC887 8-Channel High Definition Audio CODEC
On-Board Video:Intel processor with integrated graphics is required
Back Panel I/O Ports:1 x PS/2 Keyboard/Mouse combo port
1 x DVI-D
1 x VGA
1 x LAN
6 x USB 2.0
3 x Audio
Internal I/O Connectors:1 x 24-pin ATX Power
1 x 4 pin ATX 12V Power
2 x USB 2.0
1 x LPT
1 x S/PDIF Out connector
1 x Front panel audio connector
1 x COM connector
Form Factor:Micro ATX
244mm x 203mm
Gross Weight:0.92Kg
Special Features:GPU Boost - Instant iGPU Level Up!
EFI BIOS - EZ Mode - Flexible and Easy BIOS Interface
AI Suite II - One-stop Access to Innovative ASUS Features
EPU - System Level Energy Saving
Package Contents:Motherboards
Users Manual
Backplate
Driver CD
2 x SATA 3.0Gb/s Leads
