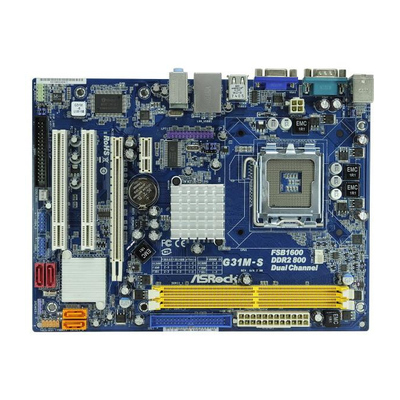

ASROCK 775 G31M-S Asrock 775 G31M-S(Skt LGA775) R2.0
Product Number: 100016726
Product Code:
775 G31M-S
Available for Collect In Store
Available for Home Delivery
£30.83ex vat
£36.99inc vat
Product Specifications
CPU
Installed Processors (Max) 0 (1)
Processor ( ) (L1 Cache) (L2 Cache) (L3 Cache)
Supported Processor Manufacturer Intel
Supported Processors Celeron/Celeron Dual-Core/Pentium Dual-Core/Core 2 Duo/Core 2 Quad/Core 2 Extreme
Hyperthreading Architecture Yes
Socket Socket LGA775/Socket T
Maximum Bus Speed 1600 MHz
Front Side Bus 1600/1333/1066/800
Motherboard
Chipset Intel G31 ICH7
SATA Supported Yes 4 x SATA 3Gb/s
IDE/EIDE Supported Yes 1 x ATA100
Rear Panel I/O Ports
VGA Port 1 x VGA
Audio Line In Ports HD Audio Jack: Line in / Front Speaker / Microphone
Keyboard Port 1 x PS/2
Mouse Port 1 x PS/2
RJ-45 Ports 1 x RJ-45 Port
USB Ports 4 x USB 2.0
Serial Ports 1 x COM 1
Internal I/O Connectors
Floppy Channels 1 x Floppy Disk Drive Connector
SATA Connectors 4 x SATA II 3Gb/s
IDE Connectors 1 x ATA-100
USB Connectors 2 x USB 2.0 (for 4 additional USB 2.0 ports)
Parallel Connectors 1 x Parallel Port Header
Cooling Fan Support 1 x CPU / 1 x Chassis
Front Panel Connectors Front panel audio connector
Power Connector Port 1 x ATX 24-Pin power connector • 1 x 4-pin ATX 12V power connector
Expansion
AGP Slots -
PCI Slots 2 slot(s) - PCI
PCI-X Slots -
PCI Express Slots 2 slot(s) - , 1 x PCI Express x16 , 1 x PCI Express x1
Memory
Maximum Memory 8 GB 667/800 MHz DDR2 (Unbuffered Non-ECC)
Memory Bus Speed Range 667 to 800 MHz
Memory Slot 2 x DIMM Slots
Graphics Device
Graphics Adaptor Yes Intel Graphics Media Accelerator 3100 384 MB
Sound
Integrated Sound 5.1 Channel Windows Vista Premium Level High Definition Audio (Realtek ALC662 Audio Codec)
Network
Integrated Network Realtek LAN 8103EL/8102EL
Network Speeds Supported 10/100 Mbps
System Requirements
Operating Systems Supported Microsoft Windows 2000 / XP / XP 64-bit / Vista / Vista 64-bit compliant
System
BIOS 4MB AMI BIOS
Special Features AMI Legal BIOS Supports Plug and Play ACPI 1.1 Compliance Wake Up
