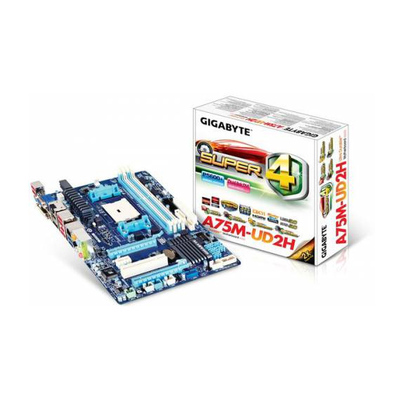

GIGABYTE GA-A75M-UD2H AMD A75 Socket FM1 VGA DVI HDMI Display Port USB 3.0 DDR3 mATX Motherboard
Product Number: 100031555
Product Code:
GA-A75M-UD2H
Available for Collect In Store
Available for Home Delivery
£83.33ex vat
£99.99inc vat
GA-A75M-UD2H - GIGABYTE Super4 motherboards are the latest range of next-generation desktop motherboards based on the AMD A75 chipset, supporting a new generation socket FM1 of 32nm AMD A-series APUs with DirectX11 graphics integrated. Not only delivering AMD™s industry-leading performance and advanced graphics capabilities, GIGABYTE Super4 motherboards are equipped with a comprehensive range of unique features that offer mainstream PC users the most compelling platform on the market today.
CPU Support for AMD A series processors / FM1 Socket (Go to GIGABYTE's website for the latest CPU support list.)
Chipset AMD A75 Chipset
Memory 4x DDR3 1866/1600/1333/1066 MHz memory modules
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
Onboard Graphics 1x D-Sub, 1x DVI-D (2560x1600 max res), 1x HDMI (1920x1200 max res), 1x Display Port (2560x1600 max res)
Audio Realtek ALC889 codec High Definition Audio 2/4/5.1/7.1-channel w/ Support for S/PDIF Out
LAN 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
Expansion Slots 1 x PCI Express x16 slots, running at x16 (PCIEX16)
1 x PCI Express x16 slots, running at x4 (PCIEX4)
1x PCI Express x1 slot
1x PCI slots
Storage Interface 5 x SATA 6Gb/s connectors w/ Raid 0,1,10 and JBOD.
1 x E-SATA 6Gb/s on the back panel
USB USB 2.0/1.1 : 4x on the back panel, 4x via USB brackets on headers
USB 3.0/2.0 : 2x on the back panel, 2x via USB brackets on headers
Firewire 1 x IEEE 1394a on the back panel, 1 x via header
Internal I/O Connectors 1 x 24-pin ATX main power connector, 1 x 4-pin ATX 12V power connector, 5 x SATA 6Gb/s connector, 1 x CPU fan header, 1 x system fan headers, 1 x power fan header, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 2 x USB 2.0/1.1 headers, 1 x USB 3.0/2.0 headers, 1 x serial port header, 1 x parallel port header, 1 x clearing CMOS jump
CPU Support for AMD A series processors / FM1 Socket (Go to GIGABYTE's website for the latest CPU support list.)
Chipset AMD A75 Chipset
Memory 4x DDR3 1866/1600/1333/1066 MHz memory modules
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
Onboard Graphics 1x D-Sub, 1x DVI-D (2560x1600 max res), 1x HDMI (1920x1200 max res), 1x Display Port (2560x1600 max res)
Audio Realtek ALC889 codec High Definition Audio 2/4/5.1/7.1-channel w/ Support for S/PDIF Out
LAN 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
Expansion Slots 1 x PCI Express x16 slots, running at x16 (PCIEX16)
1 x PCI Express x16 slots, running at x4 (PCIEX4)
1x PCI Express x1 slot
1x PCI slots
Storage Interface 5 x SATA 6Gb/s connectors w/ Raid 0,1,10 and JBOD.
1 x E-SATA 6Gb/s on the back panel
USB USB 2.0/1.1 : 4x on the back panel, 4x via USB brackets on headers
USB 3.0/2.0 : 2x on the back panel, 2x via USB brackets on headers
Firewire 1 x IEEE 1394a on the back panel, 1 x via header
Internal I/O Connectors 1 x 24-pin ATX main power connector, 1 x 4-pin ATX 12V power connector, 5 x SATA 6Gb/s connector, 1 x CPU fan header, 1 x system fan headers, 1 x power fan header, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 2 x USB 2.0/1.1 headers, 1 x USB 3.0/2.0 headers, 1 x serial port header, 1 x parallel port header, 1 x clearing CMOS jump
