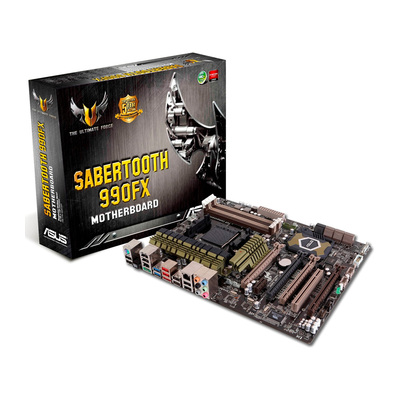

ASUS SABERTOOTH 990FX SKT-AM3+ 990FX Sound / Lan / DDR3 / USB3 / Bulldozer Ready

Model Number:SABERTOOTH 990FX
Package Type:Retail
Warranty:3 Years
BIOS:32Mb Flash ROM
UEFI BIOS
PnP
DMI 2.0
WfM 2.0
SM BIOS 2.5
ACPI 2.0a
Multi-language BIOS
ASUS EZ Flash 2

Chipset:AMD 990FX + SB950
CPU Interface:Socket AM3+
CPU Support:http://www.asus.com/Motherboards/AMD_AM3Plus/SABERTOOTH_990FX/#CPUS
RAM Technology:DDR3 (Dual Channel)
RAM Slots:4 x 240-Pin
RAM Speeds:DDR3 1066
DDR3 1333
DDR3 1600
DDR3 1866

Max. Memory Support:32GB
Expansion Slots:3 x PCI Express 2.0 x16 (x16/x16/x0 or x16/x8/x8)
1 x PCI Express 2.0 x16 (x4)
1 x PCI Express 2.0 x1
1 x PCI

Storage Controller(s):6 x S-ATA/600
RAID 0
RAID 1
RAID 5
RAID 10
2 x S-ATA/300

On-Board LAN:Realtek 8111E 1 x Gigabit LAN Controller
On-Board Audio:Realtek ALC 892 8-Channel High Definition Audio CODEC
Back Panel I/O Ports:1 x PS/2 Keyboard/Mouse combo port
1 x eS-ATA
1 x Powered eS-ATA
1 x IEEE1394a
1 x LAN
2 x USB 3.0
10 x USB 2.0
1 x Optical S/PDIF Output
6 x Audio

Internal I/O Connectors:1 x 24-pin ATX Power
1 x 8 pin ATX 12V Power
1 x USB 3.0
2 x USB 2.0
1 x COM header
1 x IEEE 1394a header
1 x S/PDIF out header
1 x Front panel audio connector (AAFP)
1 x MemOK! button
1 x Clear CMOS jumper

Form Factor:ATX
305mm x 244mm

Gross Weight:2.01Kg
Special Features:TUF CeraM!X Heatsink Coating Tech
TUF Thermal Radar
DIGI+ VRM - Herald the Arrival of a New Digital Power Design Era
UF Components [Alloy Choke, Cap and MOSFET; Certified by Military-standard]
E.S.P. [Efficient Switching Power Design]

Package Contents:Motherboard
Users manual
ASUS Q-Shield
4 x SATA 6Gb/s cables
1 x SLI bridge
