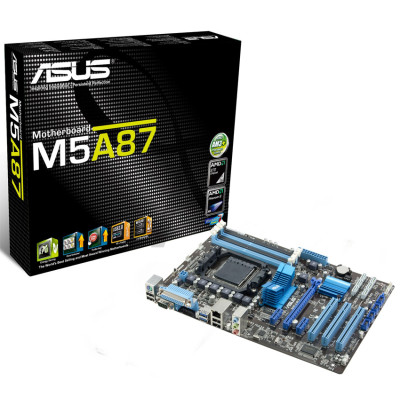

ASUS M5A87 Socket AM3+ Bulldozer Ready AMD 870 DDR3 Motherboard

Product Name:Asus M5A87 (Socket AM3+/AMD 870/DDR3/S-ATA 300/ATX)
Web Address:www.asus.com
Model Number:M5A87
Package Type:Retail
Warranty:3 Years
BIOS:16Mb Flash ROM
AMI BIOS
PnP
DMI 2.0
WfM 2.0
ACPI 2.0a
SM BIOS 2.5

Chipset:AMD 870 + SB850
CPU Interface:Socket AM3+
CPU Support:http://www.asus.com/Motherboards/AMD_AM3Plus/M5A87/#CPUS
RAM Technology:DDR3 (Dual Channel)
RAM Slots:4 x 240-Pin
RAM Speeds:DDR3 1066
DDR3 1333
DDR3 1600 (O.C)
DDR3 2000 (O.C)

Max. Memory Support:16GB
Expansion Slots:1 x PCI Express 2.0 x16
2 x PCI Express 2.0 x1
3 x PCI

Storage Controller(s):6 x S-ATA/300
RAID 0
RAID 1
RAID 5
RAID 10
JBOD

On-Board LAN:Realtek 8111E
1 x Gigabit LAN Controller

On-Board Audio:Realtek ALC 887 8-Channel High Definition Audio CODEC
Back Panel I/O Ports:1 x PS/2 Keyboard/Mouse port
1 x LAN
2 x USB 3.0
4 x USB 2.0
1 x COM
1 x Parallel
3 x Audio

Internal I/O Connectors:1 x 24-pin ATX Power
1 x 4 pin ATX 12V Power
4 x USB 2.0
1 x S/PDIF Out header
1 x Front audio pin header
1 x MemOK! button

Form Factor:ATX
305mm x 213mm

Gross Weight:1.16Kg
Special Features:AMD 140W CPU Support
Core Unlocker - Intelligently Unlocks True Core Performance
MemOK! - Any Memory is A-OK!
TurboV - Feel the adrenaline rush of real-time O.C.!
AI Suite II - One-Stop Access to Innovative ASUS Features

Package Contents:Motherboard
User Guide
Quick Start Guide
Driver CD
Backplate
2 x S-ATA Data Leads
