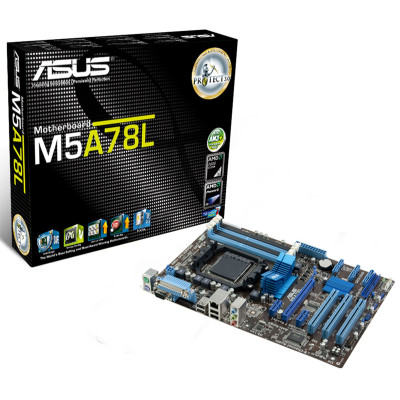

ASUS M5A78L AM3+ Bulldozer FX Ready DDR3 ATX Mainboard

Model Number:M5A78L
Package Type:Retail
Warranty:3 Years
BIOS:16Mb Flash ROM
AMI BIOS
PnP
DMI 2.0
WfM 2.0
SM BIOS 2.5
ACPI 2.0a

Chipset:AMD 760G + SB710
CPU Interface:Socket AM3+
CPU Support:http://www.asus.com/Motherboards/AMD_AM3Plus/M5A78L/#CPUS
Front Side Bus:Up to 5200MT/s
RAM Technology:DDR3 (Dual Channel)
RAM Slots:4 x 240-Pin
RAM Speeds:DDR3 1066
DDR3 1333
DDR3 1600 (O.C)
DDR3 1800 (O.C)
DDR3 1866 (O.C)
DDR3 2000 (O.C)

Max. Memory Support:16GB
Expansion Slots:1 x PCI Express 2.0 x16
2 x PCI Express 2.0 x1
3 x PCI

Storage Controller(s):6 x S-ATA/300
RAID 0
RAID 1
RAID 10
JBOD
1 x P-ATA/133

On-Board LAN:Realtek 8111E
1 x Gigabit LAN Controller

On-Board Audio:Realtek ALC 887 8-Channel High Definition Audio CODEC
Back Panel I/O Ports:1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN
4 x USB 2.0
1 x COM
1 x Parallel
3 x Audio

Internal I/O Connectors:1 x 24-pin ATX Power
1 x 4-pin ATX 12V Power
3 x USB 2.0 header
1 x S/PDIF Out header
1 x Front-panel audio header

Form Factor:ATX
305mm x 203mm

Gross Weight:1.10Kg
Special Features:AM3+ CPU Support Ready
Protect 3.0 - Protect the Earth & the system & you
Turbo Key- Touch-n-Boost!
ASUS EPU- System Level Energy Saving
Core Unlocker- Unlock true Core performance intelligently

Package Contents:User Guide
Quick Start Guide
2 x S-ATA Data Leads
Driver CD
Backplate
