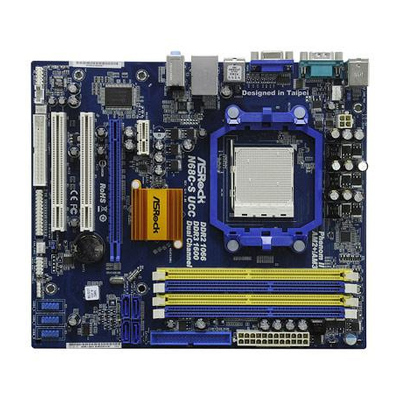

ASROCK N68C-S UCC N68C-S UCC Nvidia Mainboard With S - L - V DDR3 / DDR3

Product Name:ASROCK SKT-AM2+ N68C-S UCC S/V/L M-ATX 2000MT/s
Web Address:www.asrock.com
Model Number:N68C-S UCC
Package Type:Retail
Warranty:2 Years
BIOS:AMI
Chipset:NVIDIA GeForce 7025 + nForce 630a
CPU Interface:Socket AM2+
Max. CPU Support:Sempron 145
Athlon II X2 255
Athlon II X3 435
Athlon II X4 640
Phenom II X2 555
Phenom II X3 740
Phenom II X4 945
Phenom II X6 1090T
Front Side Bus:2000MT/s
RAM Technology:DDR2 (Dual Channel)
DDR3 (Dual Channel)
RAM Slots:2 x 240-Pin (DDR2)
2 x 240-Pin (DDR3)
RAM Speeds:DDR2 533
DDR2 667
DDR2 800
DDR2 1066 (AM2+/AM3 CPU only)
DDR3 800
DDR3 1066
DDR3 1333
DDR3 1600
Max. Memory Support:8GB (DDR2)
8GB (DDR3)
Expansion Slots:1 x PCI Express x16
1 x PCI Express x1
2 x PCI
Storage Controller(s):1 x P-ATA/133
4 x S-ATA/300
RAID 0
RAID 1
RAID 0+1
RAID 5
JBOD
On-Board LAN:Realtek PHY RTL8201EL
1 x 10/100
On-Board Audio:5.1 CH HD Audio (VIA VT1705 Audio Codec)
On-Board Video:Integrated NVIDIA GeForce 7025
Back Panel I/O Ports:1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x COM
1 x VGA
4 x USB2.0
1 x LAN
3 x Audio
Internal I/O Connectors:1 x 24-pin ATX Power
1 x 4 pin ATX 12V Power
1 x Print port header
1 x CD Audio
Front panel audio connector
3 x USB2.0
Form Factor:Micro ATX
244mm x 208mm
Gross Weight (Kg):0.86Kg
Special Features:ASRock OC Tuner
Intelligent Energy Saver
Instant Boot
ASRock Instant Flash
ASRock OC DNA
Hybrid Booster:
CPU Frequency Stepless Control
ASRock U-COP
Boot Failure Guard (B.F.G.)
ASRock AM2 Boost
Package Contents:Quick Installation Guide
2 x S-ATA Data Leads
BackPlate
Driver CD
