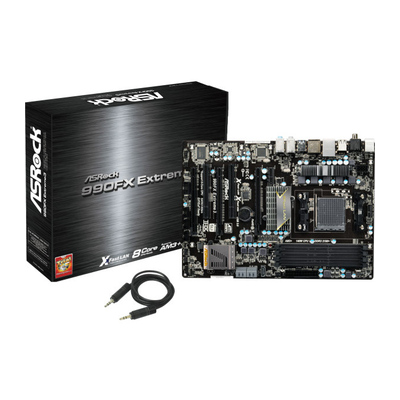

ASROCK 990FX-EXTREME3 Socket AM3+ DDR3 EXTREME3 Mainboard
Product Number: 100032667
Product Code:
990FX-EXTREME3
Out of Stock
Not available to Collect In Store
Available for Pre-Order
£79.16ex vat
£94.99inc vat
Model Number:990FX EXTREME3
Package Type:Retail
Warranty:2 Years
BIOS:32Mb AMI UEFI Legal BIOS with GUI support
Supports Plug and Play
ACPI 1.1 Compliance Wake Up Events
Supports jumperfree
SMBIOS 2.3.1 Support
CPU, VCCM, NB and SB Voltage Multi-adjustment
Chipset:AMD 990FX + SB950
CPU Interface:Socket AM3+
CPU Support:http://www.asrock.com/mb/cpu.asp?Model=990FX%20Extreme3
Front Side Bus:Up to 5200MT/s
RAM Technology:DDR3 (Dual Channel)
RAM Slots:4 x 240-Pin
RAM Speeds:DDR3 800
DDR3 1066
DDR3 1333
DDR3 1600
DDR3 1866
DDR3 2100 (O.C)
Max. Memory Support:32GB
Expansion Slots:3 x PCI Express 2.0 x16 (x16, x16, x4)
1 x PCI Express 2.0 x1
2 x PCI
Storage Controller(s):5 x S-ATA/600
RAID 0
RAID 1
RAID 5
RAID 10
On-Board LAN:PCIE x1 Gigabit LAN 10/100/1000
Broadcom BCM57781
Supports Wake-On-LAN
Supports Energy Efficient Ethernet 802.3az
Supports PXE
On-Board Audio:7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
Premium Blu-ray audio support
Supports THX TruStudio
Back Panel I/O Ports:1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x Coaxial S/PDIF Output
1 x Optical S/PDIF Output
6 x USB 2.0
2 x USB 3.0
1 x eS-ATA3
1 x LAN
6 x Audio
Internal I/O Connectors:1 x 24-pin ATX Power
1 x 8 pin ATX 12V Power
1 x IR header
1 x COM header
1 x HDMI_SPDIF header
Front panel audio connector
3 x USB 2.0 headers
Form Factor:ATX
305mm x 218mm
Gross Weight:1.32Kg
Special Features:ASRock Extreme Tuning Utility (AXTU)
ASRock Instant Boot
ASRock Instant Flash
ASRock APP Charger
ASRock SmartView
ASRock XFast USB
ASRock XFast LAN
ASRock On/Off Play Technology
Hybrid Booster
Package Contents:Motherboard
Quick Installation Guide
2 x SATA 6Gb/s Leads
Audio Lead
SLI Bridge
Backplate
Driver Disk
Keywords:Motherboards
5200MT/s
5.2 GT/s
AM3+
AMD 990FX
ATX
DDR3
SATA 6 Gbit/s
S-ATA/600
SLI
UDMA 600
USB 3.0
