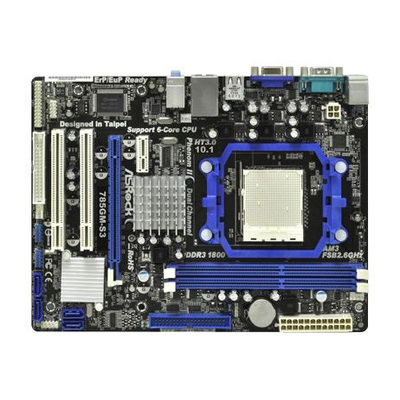

ASROCK 785GM-S3 Socket AM3 DDR3 ATX Mainboard S/V/L

Model Number:785GM-S3
Package Type:Retail
Warranty:2 Years
BIOS:AMI
Chipset:AMD 785G + SB710
CPU Interface:Socket AM3
Max. CPU Support:Sempron 145
Athlon II X2 270
Athlon II X3 445
Athlon II X4 650
Phenom II X3 740
Phenom II X4 965
Phenom II X6 1090T
Front Side Bus:Up to 5200MT/s
RAM Technology:DDR3 (Dual Channel)
RAM Slots:2 x 240-Pin
RAM Speeds:DDR3 800
DDR3 1066
DDR3 1333
DDR3 1600 (O.C)
DDR3 1800 (O.C)
Max. Memory Support:8GB
Expansion Slots:1 x PCI Express 2.0 x16
1 x PCI Express 2.0 x1
2 x PCI
Storage Controller(s):1 x P-ATA/133
4 x S-ATA/300
RAID 0
RAID 1
RAID 10
JBOD
1 x FDD
On-Board LAN:Realtek PCIEx1 LAN 8105EL
Speed: 10/100 Ethernet
Supports Wake-On-LAN
On-Board Audio:5.1 CH HD Audio (Realtek ALC662 Audio Codec)
On-Board Video:Integrated AMD Radeon HD 4200
Max. shared memory 512MB
Back Panel I/O Ports:1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x COM
1 x VGA
4 x USB 2.0
1 x LAN
3 x Audio
Internal I/O Connectors:1 x 24-pin ATX Power
1 x 4 pin ATX 12V Power
1 x Print port header
Front panel audio connector
2 x USB2.0
Form Factor:Micro ATX
244mm x 183mm
Net Weight:502g
Gross Weight:0.84Kg
Special Features:ASRock OC Tuner
Intelligent Energy Saver
Instant Boot
ASRock Instant Flash
ASRock OC DNA
ASRock AIWI
ASRock APP Charger
Hybrid Booster
Package Contents:Quick Installation Guide
2 x S-ATA Data Leads
Backplate
Driver CD
